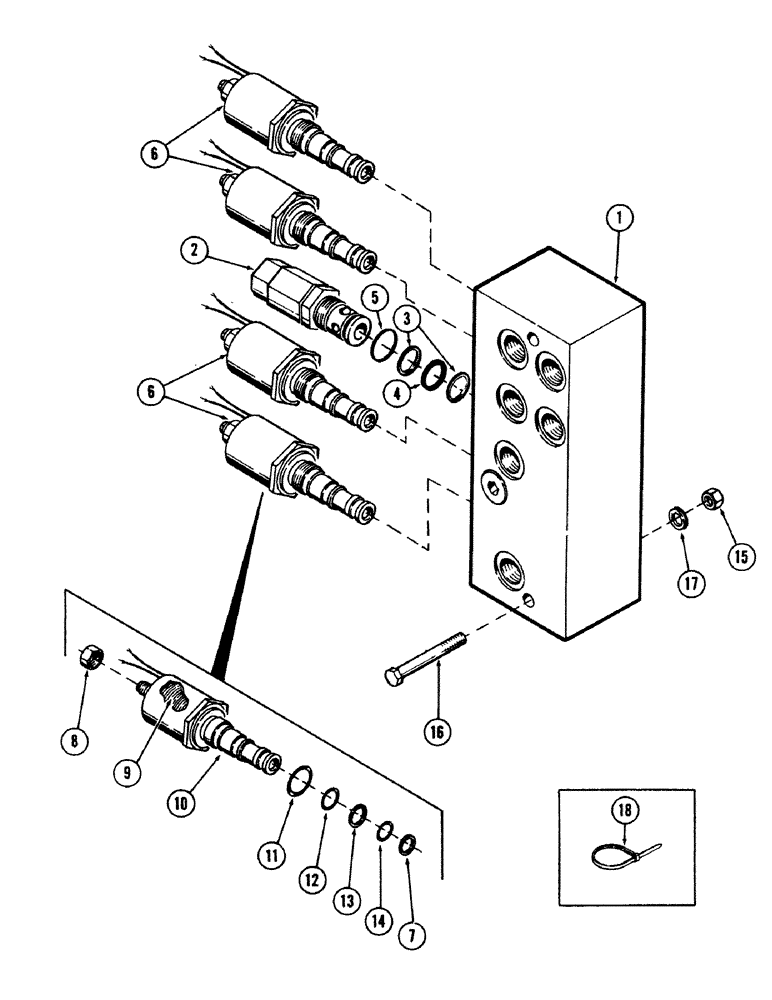

Запчасти Case 50 (8-166) - SOLENOID MONOBLOCK VALVE (08) - HYDRAULICS

S237984

VALVE, solenoid monoblock, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

S215248

CARTRIDGE

relief, Includes: Ref. 3 - 5

1шт.

3

S116423

RING, SNAP

RING, back up

2шт.

4

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

"O"RING

1шт.

5

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O"RING

1шт.

6

S237942

VALVE

CARTRIDGE, solenoid, Includes: Ref. 7 - 14

4шт.

7

S109475

BACK-UP RING

back-up

1шт.

8

S109473

NUT

1шт.

9

S116422

COIL

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, cartridge

1шт.

12

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O"RING - .364" ID x .500" OD

1шт.

13

S116420

BACK-UP RING

RING, back up

1шт.

14

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT, self locking - 5/16" NC

2шт.

16

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

17

195-521

WASHER,5/16", SAE

lock - 3/8"

2шт.

18

S73387

CLIP

TIE, nylon - (Use with wires from monoblock)

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - .644" ID x .818" OD

1шт.
