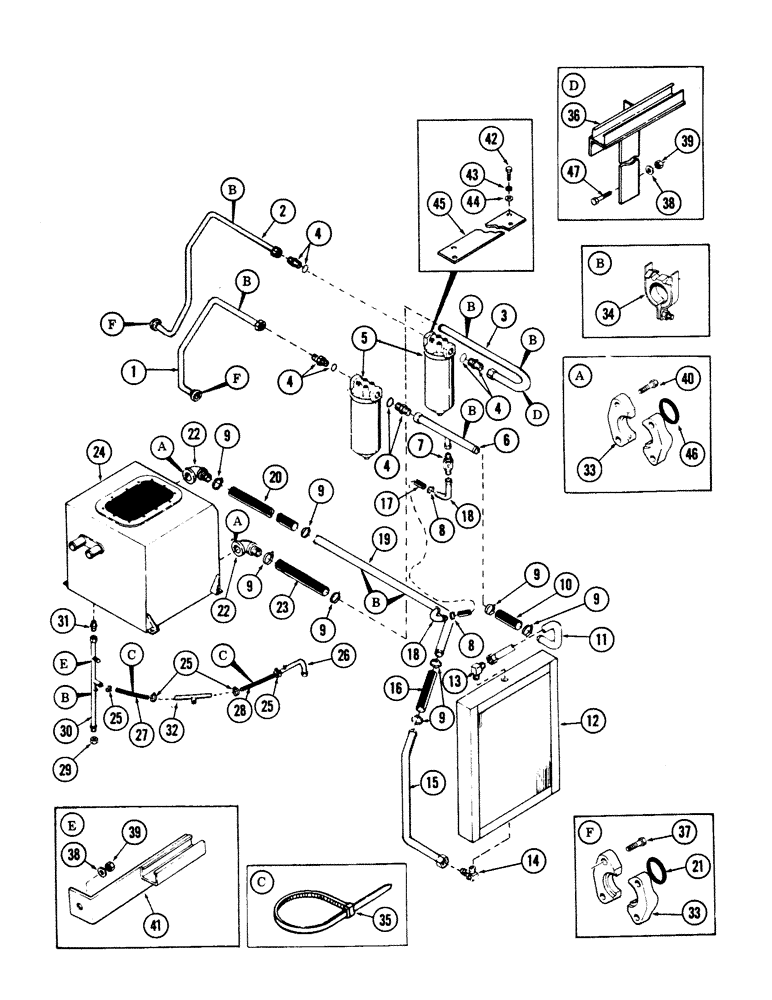

Запчасти Case 50 (8-160) - MAIN VALVES TO FILTERS TO TANK AND COOLER TUBING (08) - HYDRAULICS

1

S514544

TUBE - hydraulic 1.5" OD

1шт.

2

S514545

TUBE - hydraulic 1.5" OD

1шт.

S616139

TUBE - hydraulic (Used with optional one spool leveler valve) 1.5" OD

1шт.

3

S236426

TUBE - hydraulic 1.5" OD x 33.56, 14.06" L

1шт.

4

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

CONNECTOR - (1/2" tube) - 1-7/8" - 12 x 1-7/8" - 12

4шт.

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

4шт.

5

REF

INSTRUCTION

FILTER - hydraulic oil (See Figure 8-148)

2шт.

6

S234838

TUBE - hydraulic

1шт.

7

S105386

VALVE

- check

1шт.

8

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

9

S85429

CLAMP

- hose

1шт.

10

REF

INSTRUCTION

HOSE - low pressure, 13" (330.3 MM) long, cut from S118383

1шт.

11

S237733

TUBE - hydraulic 1.5" OD

1шт.

12

REF

INSTRUCTION

COOLER - oil (See Figure 2-10)

1шт.

13

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degree (1-1/4" tube) - 1-5/8" 12 x 1-1/4" NPT

1шт.

14

S116028

ELBOW - 90 degree (1-1/4" tube) - 1-5/8" - 12 male x 1-1/4" NPT male x 1/2" NPT female - 37" flared

1шт.

15

S234836

TUBE - hydraulic 1.5" OD

1шт.

16

REF

INSTRUCTION

HOSE - low pressure, 18" (457.2 MM) long, cut from S118383

1шт.

17

REF

INSTRUCTION

HOSE - low pressure, 9" (228.6 MM) long, cut from S118383

1шт.

18

S215412

TUBE,1.25" OD x 3" L

- hydraulic

2шт.

19

S512420

LINE

TUBE - hydraulic

1шт.

20

REF

INSTRUCTION

HOSE - low pressure, 16" (406.4 MM) long, cut from S118383

1шт.

21

S6589

O-RING

- 1.859" ID x 2.137" OD

4шт.

22

NLS

NO LONGER SERVICED

- 90 degree

2шт.

23

REF

INSTRUCTION

HOSE - low pressure, 8" (203.2 MM) long, cut from S118383

1шт.

24

REF

INSTRUCTION

TANK - hydraulic oil (See Figure 8-146)

1шт.

25

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose

4шт.

26

S229693

TUBE,1" OD x 3, 3.75" L

- hydraulic

1шт.

27

REF

INSTRUCTION

HOSE - low pressure, 25" (635 MM) long, cut from S118383

1шт.

28

REF

INSTRUCTION

HOSE - low pressure, 47" (1193.8 MM) long, cut from S118383

1шт.

29

218-760

CAP,37 Degree, 1 7/8"-12

- (1-1/2" tube) - 1-7/8" - 12

1шт.

30

S238575

LINE

TUBE - hydraulic

1шт.

31

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 x 1-1/2" - 11-1/2

1шт.

32

S238083

TUBE - hydraulic

1шт.

33

A14157

FLANGE

CLAMP - tube

1шт.

34

S98324

CLAMP

- tube

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

36

S234786

BRACKET

- filter mounting

2шт.

37

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3 - Low pressure

1шт.

38

S95569

WASHER

- flat, 1/2"

9шт.

39

131-70

NUT,1/2"-13, GB

NUT - lock, 1/2" NC

5шт.

40

131-481

BOLT - 1/2" x 1-1/4" NC hex (Grade 5)

8шт.

41

S235039

BRACKET

- clamp mounting

1шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

44

195-103

WASHER,5/16"

- flat, 3/8"

8шт.

45

S238226

PLATE

- fil;ter mounting

2шт.

46

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1.859" ID x 2.132" OD

2шт.

47

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.
