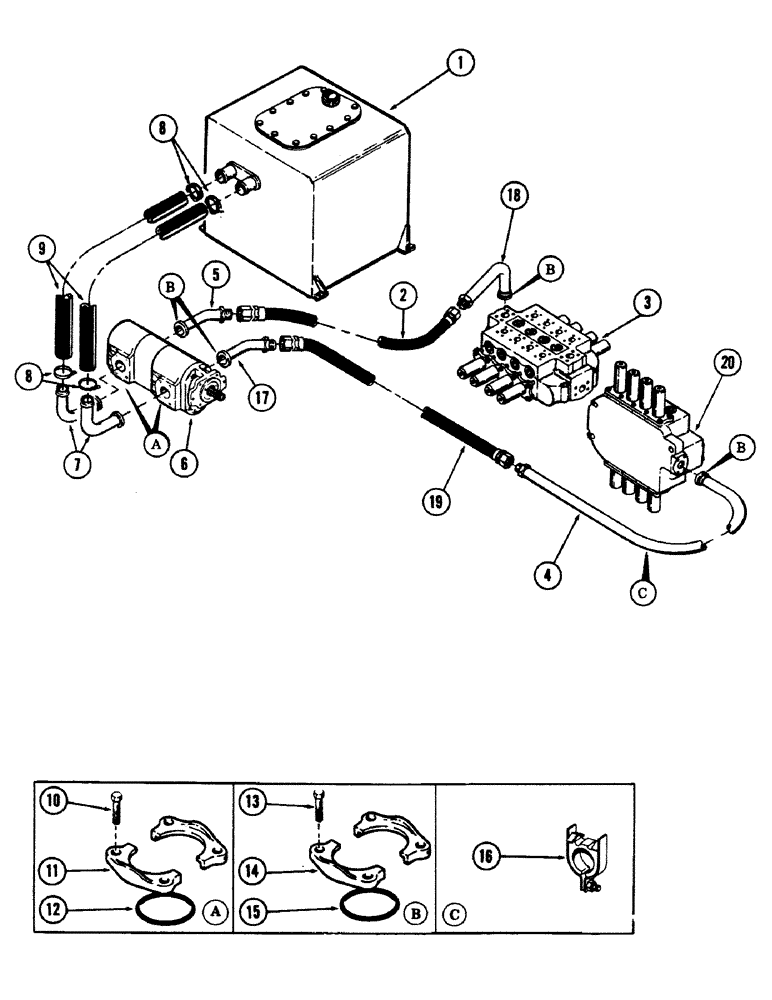

Запчасти Case 50 (8-158) - OIL TANK TO PUMP TO VALVES TUBING (08) - HYDRAULICS

1

REF

INSTRUCTION

TANK - hydraulic oil (See Figure 8-146)

1шт.

2

S8628

HOSE

- high pressure, 1" (25.4 MM) ID x 36" (914.4 MM) long

1шт.

3

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 8-170)

1шт.

4

S236934

TUBE,1.25" OD x 5.06, 19.56" L

- hydraulic (Used with CASE engines)

1шт.

S236428

TUBE,1.25" OD

- hydraulic (Used with DETROIT DIESEL engines)

1шт.

5

S235919

ADAPTER

TUBE - hydraulic (Used with CASE engines)

1шт.

S26936

TUBE

- hydraulic (Used with DETROIT DIESEL engines)

1шт.

6

REF

INSTRUCTION

PUMP - main hydraulic (Used with CASE engines) (See Figure 8-150)

1шт.

REF

INSTRUCTION

PUMP - main hydraulic (Used with DETROIT DIESEL engines) (See Figure 8-152)

1шт.

7

S238509

TUBE,2" OD x 4.81, 8" L

- hydraulic

2шт.

8

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

- hose

4шт.

9

REF

INSTRUCTION

HOSE - low pressure, 2 pieces, 2" (508 MM) ID x 40" (1016 MM) long, cut from S118379

1шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

11

L14386

CLAMP

- half flange

4шт.

12

S6322

RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

O-RING - 2.734" ID x 3.000" OD

2шт.

13

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

14

A12301

CLAMP,Half

CLAMP - half flange

4шт.

15

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1.484" ID x 1.762" OD

4шт.

16

S93266

CLAMP

- tube

2шт.

17

S26936

TUBE

- hydraulic

1шт.

18

S236427

TUBE,1.25" OD x 8.06, 5.56" L

- hydraulic

1шт.

19

S235936

HOSE

- high pressure, 1" (25.4 MM) ID x 49" (1244.6 MM) long (Used with CASE engines)

1шт.

S8628

HOSE

- high pressure - 1" (25.4 MM) ID x 36" (914.4 MM) long (Used with DETROIT DIESEL engines)

1шт.

20

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 8-168)

1шт.

S118379

HOSE,2.00" ID x 60.00", SAE 100R4

2.00" ID x 60.00" Bulk, SAE 100R4 - Low pressure

1шт.
