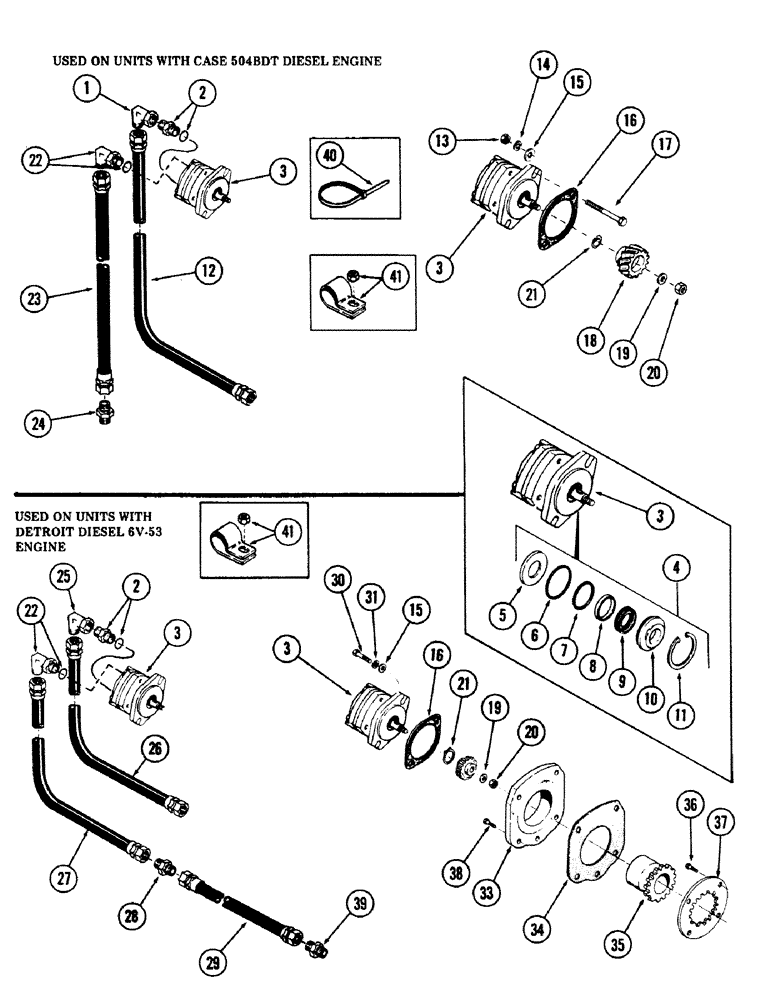

Запчасти Case 50 (8-154) - PILOT PRESSURE TUBING FROM AUXILIARY PUMP (08) - HYDRAULICS

1

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree swivel (3/8" tube) 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

2

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1-1/16" - 12 male - 37 degree flared

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

3

A139692

PUMP

- auxiliary, Includes: Ref. 4 - 11

1шт.

4

A45378

SEAL

KIT - pump seal (Replaces A45284), Includes: Ref. 5 - 11

1шт.

5

A45375

WASHER

RING - back up

1шт.

6

A59066

O-RING,1.239" ID x 1.379" OD

- 1.250" ID x 1.375" OD

1шт.

7

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- .937" ID x 1.125" OD

1шт.

8

A45376

COLLAR

- o-ring

1шт.

9

A45374

RING

- quad

1шт.

10

A45377

SEAL

RETAINER - seal

1шт.

11

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

12

S232016

HOSE - high pressure, 3/8" (9.5 MM) ID x 100" (2540 MM) long (With 9/16" - 18 female pressed on couplings)

1шт.

13

REF

INSTRUCTION

NUT - 3/8" NC (Existing hardware from engine)

2шт.

14

REF

INSTRUCTION

WASHER - lock, 3/8" (Existing hardware from engine)

2шт.

15

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8"

2шт.

16

S108814

GASKET

1шт.

17

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8" x 3-3/8" NC hex (Grade 5)

2шт.

18

L43703

GEAR

1шт.

19

195-530

WASHER,7/16"

- flat, 1/2"

1шт.

20

131-58

LOCK NUT,1/2"-20, G5

NUT - self locking, 1/2" NC

1шт.

21

D32101

SNAP RING,#62, Ext

Ring, Snap, , onto pump shaft #62, Ext

1шт.

22

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree adjustable (5/8" tube) - 7/8" - 14 male x 1-1/16" - 12 male - 37 degrees flared

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

23

S8581

HOSE ASSY.

HOSE - high pressure, 1/2" (12.7 MM) ID x 48" (1219.2 MM) long (With 7/8" - 14 female pressed on couplings)

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - (5/8" tube) - 7/8" - 14 male x 1/2" NPT male - 37 degree flared

1шт.

25

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel (3/8" tube) - 9/16" - 18 male x 9/16" 18 female - 37 degrees flared

1шт.

26

S227397

HOSE ASSY.

HOSE - high pressure, 3/8" ID (9.5 MM) ID x 70" (1778 MM) long (With 9/16" - 18 female pressed on couplings)

1шт.

27

S8578

HOSE

- high pressure, 1/2" (12.7 MM) ID x 26" (660.4 MM) long (With 7/8" - 14 female pressed on couplings)

1шт.

28

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male - 37 degree flared

1шт.

29

L33364

GASKET

HOSE - high pressure, 1/2" (12.7 MM) ID x 60" (1524 MM) long (With 7/8" - 14 female pressed on couplings)

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Pump to adapter) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

S108809

SPROCKET ASSY.

SPROCKET

1шт.

33

S108812

ADAPTER

1шт.

34

S108813

GASKET

1шт.

35

S108810

COUPLING

1шт.

36

S108817

BOLT

- (Mounts disc to cam shaft gear)

4шт.

37

S86382

GEAR

DISC

1шт.

38

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Adapter to flywheel housing Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

- 7/16" x 1" NC hex (Grade 5) (Adapter to flywheel housing)

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

39

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 1/2" NPT male - 37 degree flared

1шт.

40

S73387

CLIP

TIE - cable

1шт.

41

R14668

CLAMP

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

1шт.
