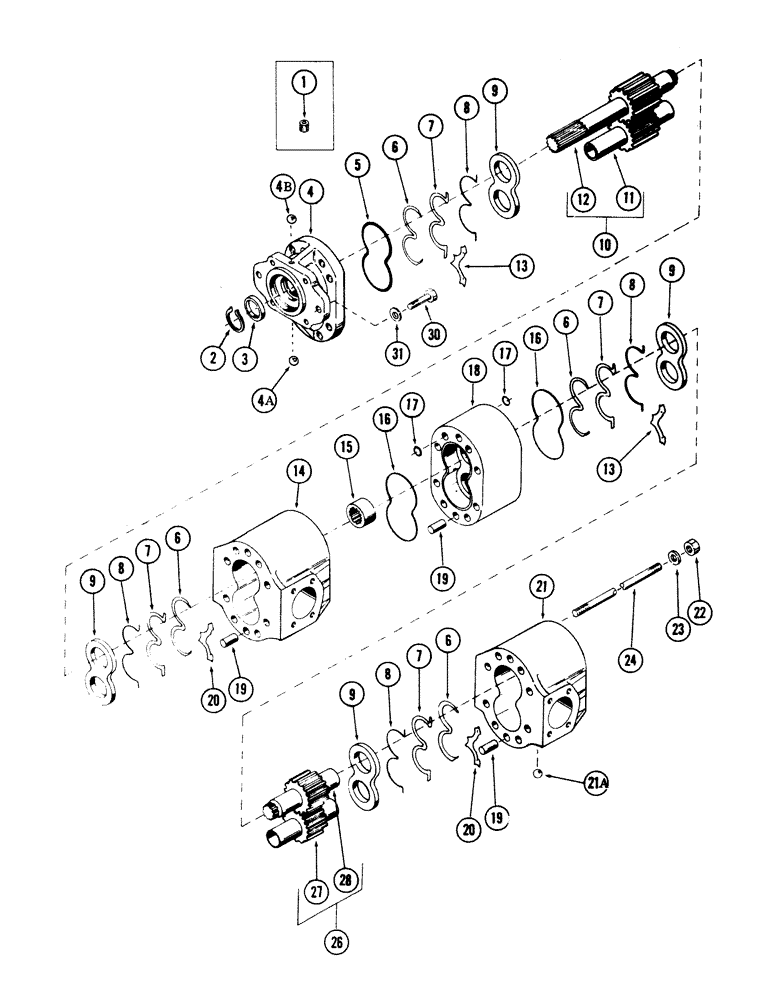

Запчасти Case 50 (8-152) - MAIN HYDRAULIC PUMP, (USED WITH DETROIT DIESEL 6V-53 ENGINE) (08) - HYDRAULICS

S513591

PUMP

- main hydraulic, Includes: Ref. 1 - 28

1шт.

1

L35776

PLUG

- (Into discharge port)

1шт.

2

D41419

RING

- snap

1шт.

Part of Front Section Kit, P/N S236844

1шт.

3

N6843

SEAL

1шт.

Part of Seal Kit, P/N S113934

1шт.

Part of Front Section Kit, P/N S236844

1шт.

4

S112363

FLANGE

Part of Rear Section, P/N S236845 4A and 4B

1шт.

4a

211-101

BALL,1/4" Dia, Stainless

1шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Rear Section, P/N S236845

1шт.

4b

S113599

BALL

1шт.

Part of Front Section Kit, P/N S236844

1шт.

S109040

BUSHING

- (Not illustrated)

1шт.

Part of Front Section Kit, P/N S236844

1шт.

5

S98712

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N S113934

1шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Pressure Balance Kit, P/N S109083

1шт.

6

S108490

OIL SEAL

RING - retainer

4шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Pressure Balance Kit, P/N S109083

1шт.

Part of Rear Section, P/N S236845

1шт.

7

S114828

OIL SEAL

RING - back up

4шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Pressure Balance Kit, P/N S109083

1шт.

Part of Rear Section, P/N S236845

1шт.

8

S108891

SEAL

O-RING

4шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Pressure Balance Kit, P/N S109083

1шт.

Part of Rear Section, P/N S236845

1шт.

9

S114855

PLATE

- pressure

4шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Rear Section, P/N S236845

1шт.

10

S108901

GEAR

KIT - front drive gear, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler - (Front)

1шт.

Part of Front Section Kit, P/N S236844

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - drive - (Front)

1шт.

13

S108894

PLATE

- isolation - (Top)

2шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Rear Section, P/N S236845

1шт.

14

S108486

BODY

- front section

1шт.

Part of Front Section Kit, P/N S236844

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

15

S108895

COUPLING

- splined

1шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Rear Section, P/N S236845

1шт.

16

S98713

O-RING

2шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Pressure Balance Kit, P/N S109083

1шт.

Part of Rear Section, P/N S236845

1шт.

17

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- stud stabilizer

24шт.

Part of Pressure Balance Kit, P/N S109083

1шт.

Part of Rear Section, P/N S236845

1шт.

18

S108488

PLATE - bearing

1шт.

Part of Rear Section, P/N S236845

1шт.

S109040

BUSHING

- (Not illustrated)

2шт.

19

D41414

PIN

DOWEL

6шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Rear Section, P/N S236845

1шт.

20

S108893

PLATE

- isolation - (Bottom)

2шт.

Part of Front Section Kit, P/N S236844

1шт.

Part of Rear Section, P/N S236845

1шт.

21

S108487

BODY

- rear section, Includes: Ref. 21A

1шт.

Part of Rear Section, P/N S236845

1шт.

21a

211-101

BALL,1/4" Dia, Stainless

1шт.

S109040

BUSHING

- (Not illustrated)

1шт.

22

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8" NF

8шт.

23

S98714

WASHER

- flat 5/8"

8шт.

24

S108898

STUD

8шт.

26

S108902

KIT - rear drive gear, Includes: Ref. 27 and 28

1шт.

Part of Rear Section, P/N S236845

1шт.

27

NSS

NOT SOLD SEPARAT

GEAR - idler - (Rear)

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - drive - (Rear)

1шт.

30

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts pump to engine) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

31

196-20

WASHER,41/64" x 1.047" x .134", HDN

flat - 5/8"

2шт.

32

S113934

KIT

- seal (Consists of ref. 3 and 5)

1шт.

33

S109083

KIT

- pressure balance - (Consists of ref, 5 thru 8, 16 and 17)

1шт.

34

S236844

HOUSING

KIT - front section - (Consists of ref. 2 thru 10, 13 thru 16, 19 and 20)

1шт.

35

S236845

BODY

KIT - rear section - (Consists of ref 4A, 6 thru 9, 13, 15 thru 21 and 26)

1шт.
