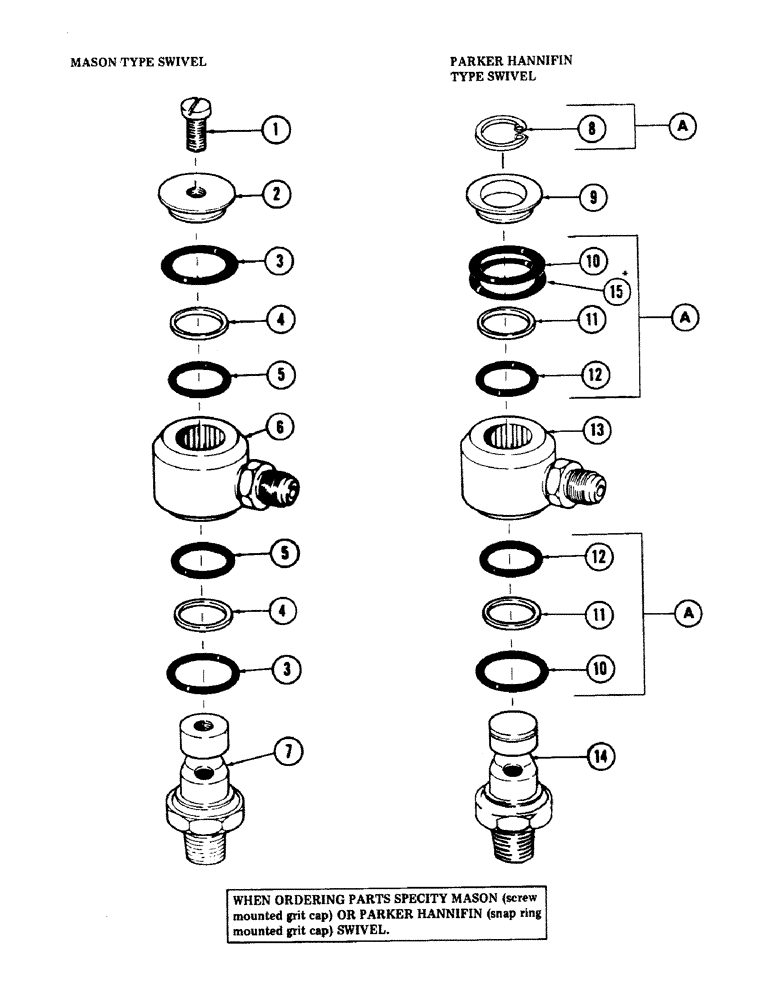

Запчасти Case 50 (7-140) - INNER SWIVEL, USED WITH HI-LOW RANGE SHIFT (07) - BRAKES

S209351

FITTING

SWIVEL - inner (Mason), Includes: Ref. 1 - 7

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

- machine, No. 10 x 3/8" NC

1шт.

2

S7989

CAP

- grit

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- .737" ID x .937" OD

2шт.

4

S80212

WASHER

RING - back up

2шт.

5

A17692

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- .612" ID x .812" OD

2шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

7

NSS

NOT SOLD SEPARAT

STEM

1шт.

S209351

FITTING

SWIVEL - inner (Parker Hannifin), Includes: Ref. 8 - 15

1шт.

8

A

RADIO

RING - snap

1шт.

9

NSS

NOT SOLD SEPARAT

CAP - grit

1шт.

10

A

RADIO

O-RING

2шт.

11

A

RADIO

RING - back up

2шт.

12

A

RADIO

O-RING

2шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

15

A

RADIO

O-RING

1шт.

a

S95177

KIT

- service (consists of Ref. 8,10 thru 12 and 15)

1шт.
