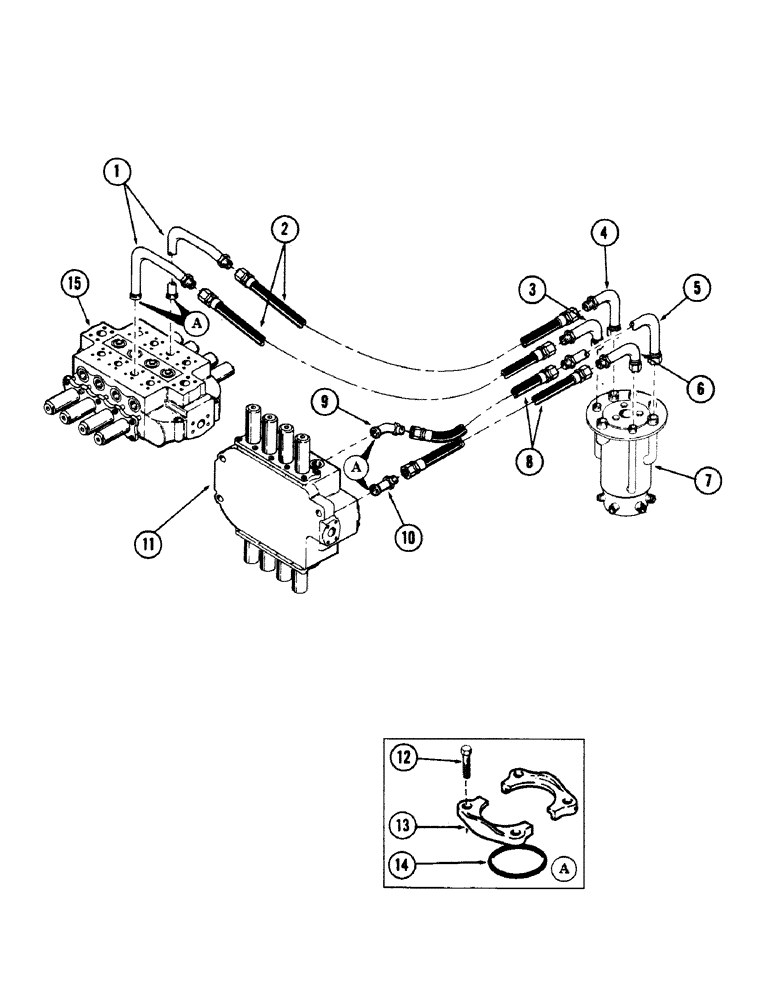

Запчасти Case 50 (6-134) - TRACK DRIVE MOTOR TUBING FROM VALVES TO SWIVEL (06) - POWER TRAIN

1

S231597

TUBE ASSY.,1.25" OD x 8.4, 6.86" L

TUBE - hydraulic

2шт.

2

S8628

HOSE

- high pressure, 1" ID (25.4 MM) x 36" (914.4 MM) long

2шт.

3

S232107

TUBE ASSY.,1" OD x 7.65, 4.10" L

TUBE - hydraulic

1шт.

4

S232827

TUBE ASSY.,1" OD x 6.67, 4.55" L

TUBE - hydraulic

1шт.

5

S232828

TUBE ASSY.,1" OD x 10.21, 6.68" L

TUBE - hydraulic

1шт.

6

S232107

TUBE ASSY.,1" OD x 7.65, 4.10" L

TUBE - hydraulic

1шт.

7

REF

INSTRUCTION

SWIVEL - 7 port hydraulic (See Figure 8-226)

1шт.

8

S401530

HOSE ASSY.

HOSE - high pressure, 1" ID x 20" (508 MM) long

2шт.

9

S232093

FITTING

TUBE - hydraulic

1шт.

10

S232092

TUBE

- hydraulic

1шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 8-168)

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

13

A12306

FLANGE

- half

8шт.

14

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1.296" ID x 1.562" OD

4шт.

15

REF

INSTRUCTION

VALVE - 4-spool main control - (See Figure 8-170)

1шт.
