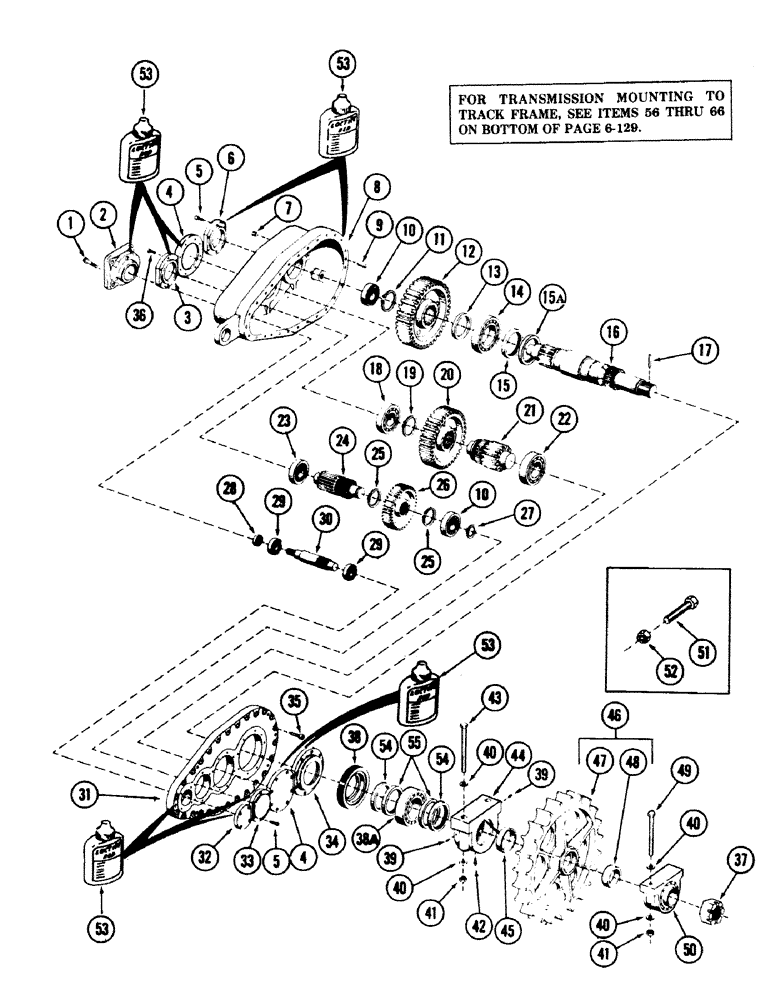

Запчасти Case 50 (6-126) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

S611014

TRANSMISSION - final drive, Includes: Ref. 1 - 37

2шт.

1

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

BOLT - 1/2" x 1-1/4" NC hex socket head (Grade 8)

3шт.

2

S510345

ADAPTER

- brake

1шт.

3

S510347

COVER

- bearing

1шт.

4

S507593

COVER

- bearing

2шт.

5

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" x 1" NC hex socket head (Grade 8)

47шт.

6

S507599

COVER

- bearing

1шт.

7

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" NPT male, drain and fill

4шт.

8

S953541

HOUSING

- transmission

1шт.

9

S65037

DOWEL

PIN - dowel, 5/8" diameter

2шт.

10

D40192

BALL BEARING

BEARING

2шт.

11

S96948

SNAP RING,#375, Ext

RING - retaining, 3-7/16"

1шт.

12

S605267

GEAR

- output

1шт.

13

S95494

SPACER

1шт.

14

S96220

BALL BEARING,100 mm ID x 180 mm OD x 34 mm

BEARING

1шт.

15

S96168

SEAL

- oil

1шт.

15a

S235141

SEAL

- dirt

1шт.

16

S605277

SHAFT

- output

1шт.

17

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

18

S96216

BEARING, ROLLER, CYL,65mm ID x 140mm OD x 33mm

BEARING

1шт.

19

S96949

SNAP RING,#387, Ext

RING - retaining, 3-9/16"

1шт.

19

S96949

SNAP RING,#387, Ext

RING - retaining, 3-9/16"

1шт.

20

S605269

GEAR

- intermediate output

1шт.

21

S605268

SHAFT

- intermediate output

1шт.

22

S96217

BEARING, ROLLER, CYL,70mm ID x 150mm OD x 35mm

BEARING

1шт.

23

S96215

BEARING, ROLLER, CYL,50mm ID x 110mm OD x 27mm

BEARING

1шт.

24

S605270

SHAFT

- intermediate output

1шт.

25

F11296

SNAP RING,#300, Ext

RING - retaining, 2-3/4"

2шт.

26

S605271

GEAR

- input

1шт.

27

100-11196

SNAP RING,#196, Ext

RING - retaining, 1-13/16", CLAMP - valve control cable

1шт.

28

S96159

SEAL

- input shaft

1шт.

29

S96214

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm

BEARING

2шт.

30

S605276

SHAFT

- input

1шт.

31

S953542

COVER

- transmission

1шт.

32

S507597

COVER

- bearing

1шт.

33

S507595

COVER

- bearing

1шт.

34

S512872

COVER

- bearing

1шт.

35

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - 1/2" x 1-3/4" NC hex socket head (Grade 8)

26шт.

36

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - 3/8" x 1" NC hex socket head (Grade 8)

6шт.

37

25-1340

SLOTTED NUT,2 1/2"-12, G5

NUT - castle, 2-1/2" NF

1шт.

38

S91713

RETAINER - seal

1шт.

38a

S97820

SPHERICAL BEARING,100mm ID x 180mm OD x 46mm W

BEARING - spherical

1шт.

39

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

SCREW - set, 1/4" NC x 7/16"

2шт.

40

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- hardened flat, 3/4"

8шт.

41

131-450

NUT,3/4"-10

NUT - self locking, 3/4" NC

4шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

1шт.

43

26-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- 3/4" x 9" NC hex (Grade 8)

2шт.

44

S507983

HOUSING

1шт.

45

S95495

SPACER

1шт.

46

S507945

DRIVEN SPROCKET

SPROCKET ASSEMBLY, Includes: Ref. 47 and 48

1шт.

47

NSS

NOT SOLD SEPARAT

SPROCKET - (Order S507945)

1шт.

48

S95493

SPACER

1шт.

49

26-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 8

- 3/4" x 8" NC hex (Grade 8)

2шт.

50

S507600

BEARING ASSY

BLOCK - pillow

1шт.

51

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

BOLT - tap, 3/4" x 3" NC hex (Grade 5)

2шт.

52

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" NC

2шт.

53

B17423

LOCTITE

- 10CC bottle - (Red) - (Used in place of gaskets - substitutes must not be used)

1шт.

54

S235141

SEAL

- dirt

2шт.

55

S235140

SEAL

- grease - (With spring) - (If replacement is required order S235141 dirt seal illustrated as ref. 54 also)

2шт.

56

25-2416

SLOTTED NUT,1"-8, G5

NUT - castle - 1" NC

1шт.

57

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

58

S89926

SPRING

- elastomer

2шт.

59

S223205

LINK

2шт.

60

131-82

NUT,1"-8

NUT - self locking, 1" NC

2шт.

61

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

62

S237711

SHACKLE

1шт.

63

S115639

SPACER

1шт.

64

S89925

WASHER

- flat

2шт.

65

S115639

SPACER

- (mounts transmission) - (Not shown)

1шт.

66

S116289

SPACER

- (mounts transmission) - (Not shown)

1шт.
