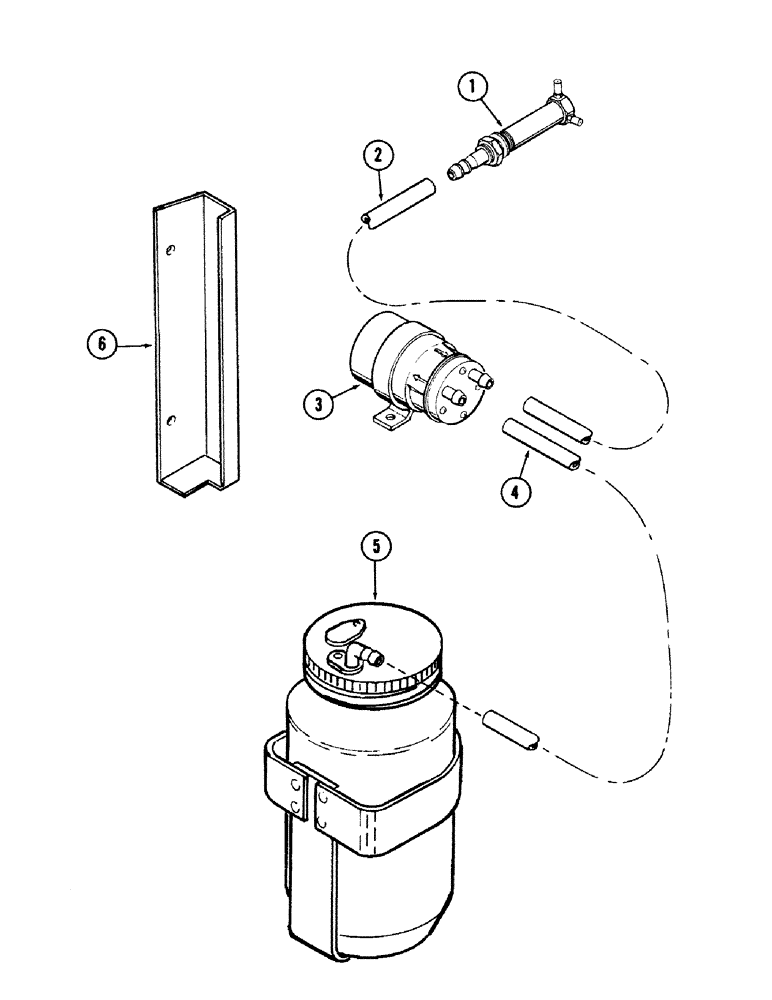

Запчасти Case 50 (4-100) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

S117715

NOZZLE INJECTION

NOZZLE

1шт.

2

S117557

TUBE,10" L

1шт.

3

S117698

PUMP

1шт.

4

S117556

TUBE,0.25" ID x 73" L

1шт.

5

S515124

WASHER

ASSY

1шт.

6

S117645

COVER ASSY

1шт.

7

REF

INSTRUCTION

SWITCH - washer (Not shown) (See Ref. 5 on Figure 4-90)

1шт.
