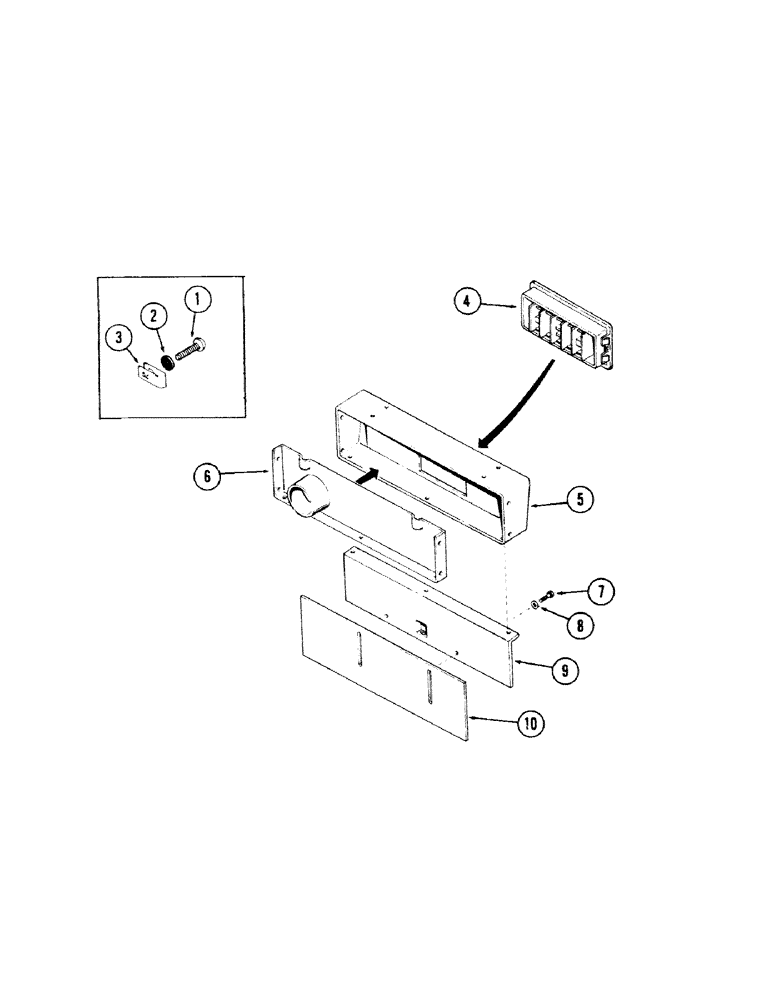

Запчасти Case 50 (4-096) - HEATER SHROUDING, (LOCATED UNDER OPERATORS SEAT), HEATER (04) - ELECTRICAL SYSTEMS

1

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 NC x 3/4"

1шт.

179-162

SCREW,Cross Oval Hd, #10 - 24 x 1"

- machine

1шт.

2

F64315

WASHER

- No. 10

1шт.

3

S117167

CLIP

- Tinnerman, No. 10

1шт.

4

F89948

GUARD

LOUVER

1шт.

5

S616407

PANEL

1шт.

6

S616408

PANEL

1шт.

7

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT

2шт.

8

195-2251

WASHER,.281" x 1" x .109"

2шт.

9

S515207

PANEL

1шт.

10

S515208

PANEL

1шт.

S239156

HEATER

- hot water

1шт.
