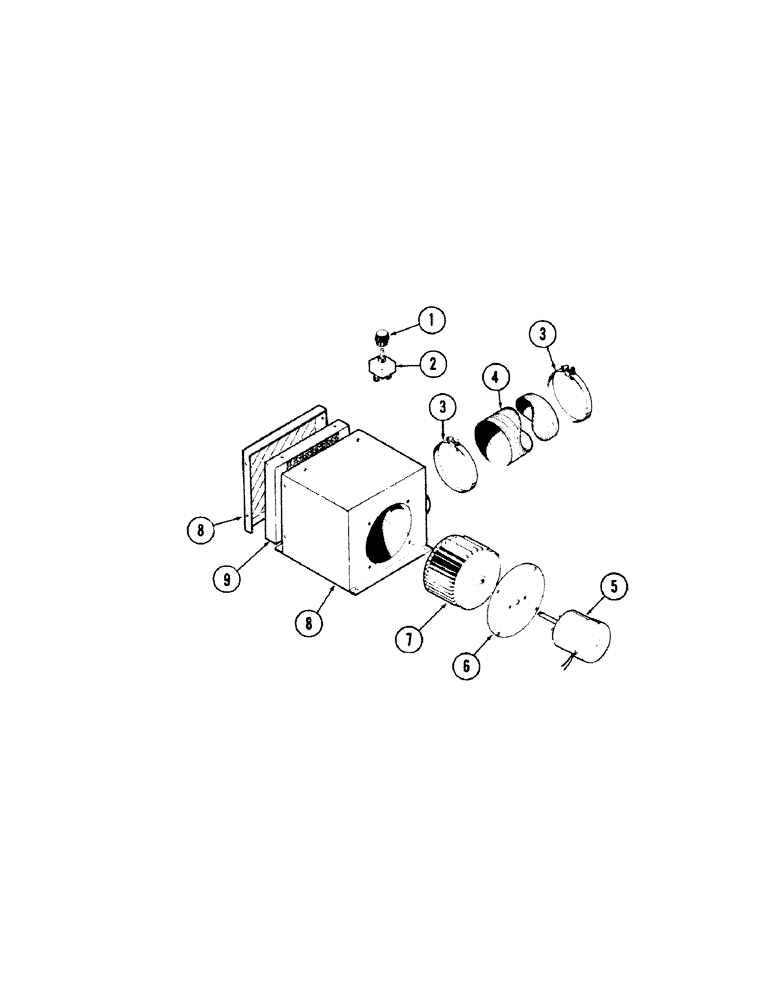

Запчасти Case 50 (4-096[1]) - HEATER (04) - ELECTRICAL SYSTEMS

S239156

HEATER

- hot water, Includes: Ref. 1 - 9

1шт.

1

S118431

KNOB

1шт.

2

S118430

SWITCH

- rotary

1шт.

3

S118429

CLAMP

2шт.

4

S118428

DUCT

- air, 4" ID x 24" long, connects to Ref. 6 above

1шт.

5

S118418

MOTOR, ELECTRIC

MOTOR - 24 volt

1шт.

6

S118422

PLATE

- motor mounting

1шт.

7

S118423

BLOWER

- wheel

1шт.

8

S118417

HOUSING

1шт.

9

S118427

CORE

1шт.
