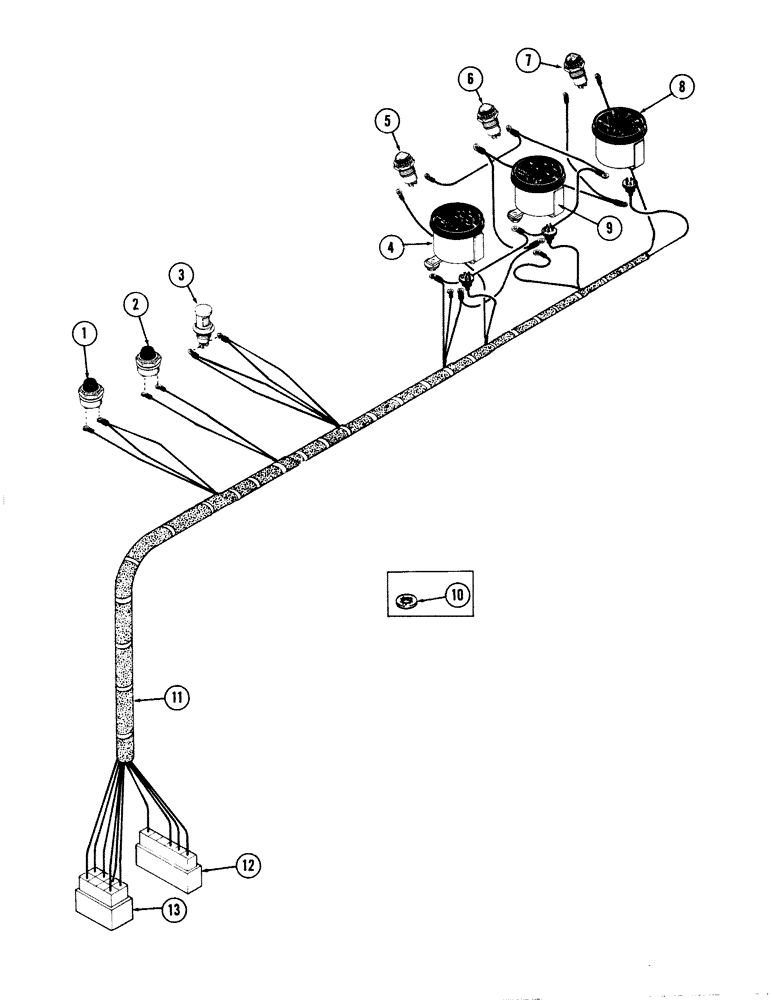

Запчасти Case 50 (4-092) - ELECTRICAL RIGHT CONTROL CONSOLE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BUTTON - cold start (See Ref. 10 on Figure 2-18)

1шт.

2

D34924

SWITCH

BUTTON - horn

1шт.

3

S239151

LIGHT

LAMP - panel

1шт.

4

S239139

GAUGE

- oil pressure

1шт.

5

S239150

LIGHT

LAMP - warning, hydraulic filter

1шт.

6

S239149

LIGHT

LAMP - key-on indicator

1шт.

7

S239149

LIGHT

LAMP - brake

1шт.

8

S239336

VOLTMETER

1шт.

9

S239138

GAUGE

- temperature

1шт.

10

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (Used with switches and gauges Int Tooth, #10

1шт.

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, (Used with switches) Int Tooth, #8

1шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, (Used with switches) Int Tooth, #6

1шт.

11

S615775

HARNESS

- wire, right console, connects to cab harness, Includes: Ref. 12 and 13

1шт.

12

223-170

CONNECTOR, ELEC

CONNECTOR - electrical, female, 6 contact

1шт.

13

223-172

CONNECTOR, ELEC

CONNECTOR - electrical, female, 8 contact

1шт.

14

S116543

BULB

- in gauges (Not shown)

3шт.
