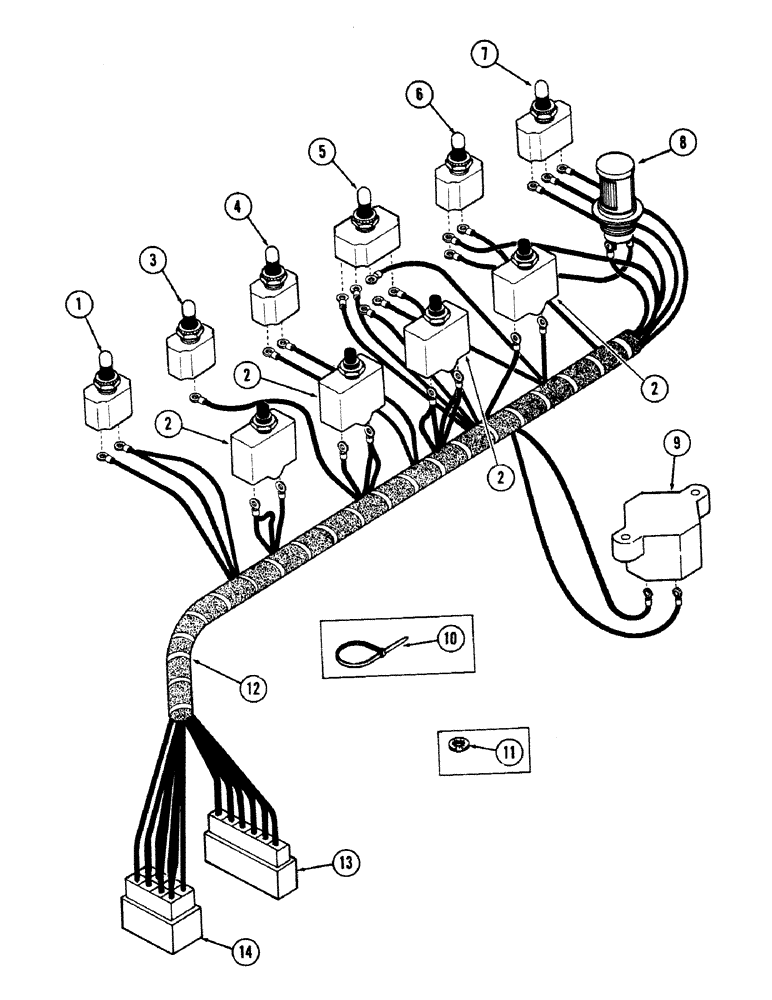

Запчасти Case 50 (4-090) - ELECTRICAL LEFT CONTROL CONSOLE (04) - ELECTRICAL SYSTEMS

1

S88636

IGNITION SWITCH

SWITCH - drive range

1шт.

2

S115714

BREAKER

- circuit

4шт.

3

REF

INSTRUCTION

SWITCH - work lamp (See Ref. 20 on Figure 4-102)

1шт.

4

S91527

SWITCH

- washer

1шт.

S116909

BOOT

1шт.

5

S117009

SWITCH

- wiper

1шт.

S116909

BOOT

1шт.

6

S88636

IGNITION SWITCH

SWITCH - panel lamp

1шт.

S116090

BOOT

1шт.

7

S108079

SWITCH

- drive brake

1шт.

8

S239151

LIGHT

LAMP - panel

1шт.

9

S115714

BREAKER

- circuit, for wipers (Located under console)

1шт.

10

S73387

CLIP

TIE - cable

1шт.

11

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (Used with switches) Int Tooth, #10

1шт.

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, (Used with switches) Int Tooth, #8

1шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, (Used with switches) Int Tooth, #6

1шт.

12

S615776

HARNESS

- wire, left console, connects to cab harness, Includes: Ref. 13 and 14

1шт.

13

223-170

CONNECTOR, ELEC

CONNECTOR - electrical, female, 6 contact

1шт.

14

223-172

CONNECTOR, ELEC

CONNECTOR - electrical, female, 8 contact

1шт.
