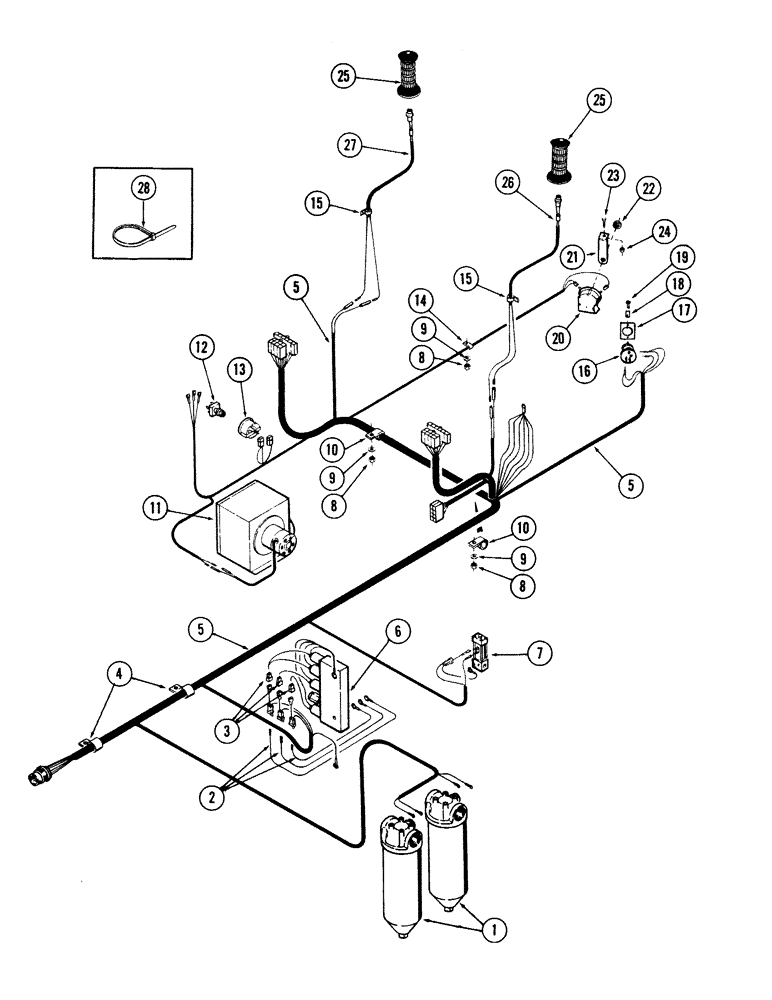

Запчасти Case 50 (4-088) - CAB AND TURNTABLE HARNESS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

FILTER - hydraulic oil (See Figure 8-148)

2шт.

2

S238309

DIODE

WIRE - diode, used with fast hoist, drive brake and drive lock solenoids

3шт.

3

S117294

ROD, CONNECTING

CONNECTOR - female electrical

3шт.

4

NLS

NO LONGER SERVICED

-, Serial Range: harness-turntable

2шт.

5

S615668

HARNESS

- wire, turntable

1шт.

6

REF

INSTRUCTION

VALVE - solenoid monoblock (See Figure 8-166)

1шт.

7

REF

INSTRUCTION

SOLENOID - two speed (See Figure 7-142)

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" NC

3шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8"

3шт.

10

T50103

CLAMP

-, Serial Range: harness-turntable

2шт.

11

REF

INSTRUCTION

HEATER - (See Page 4-96)

1шт.

12

REF

INSTRUCTION

SWITCH - heater (See Ref. 1 and 2 on Figure 4-96)

1шт.

13

S239011

HOURMETER

1шт.

14

A61265

ELBOW

CLAMP - horn, Serial Range: wire-turntable

1шт.

15

A38799

CLAMP

- (Fast hoist and drive lock wires to panel supports)

2шт.

16

S108413

SWITCH

- key

1шт.

17

S239946

PLATE

- key switch

1шт.

18

S117167

CLIP

- Tinnerman, No. 10

2шт.

19

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, No. 10 NC x 3/4"

2шт.

20

D77650

HORN

1шт.

21

S203190

BRACKET

- horn mounting

1шт.

22

S64752

NUT

-, Serial Range: horn-bracket

1шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex

1шт.

25

REF

INSTRUCTION

GRIP - handle (See Ref. 1 on Figure 8-230)

2шт.

26

S238765

SWITCH

ASSEMBLY - drive lock

1шт.

27

S238765

SWITCH

ASSEMBLY - fast hoist

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.
