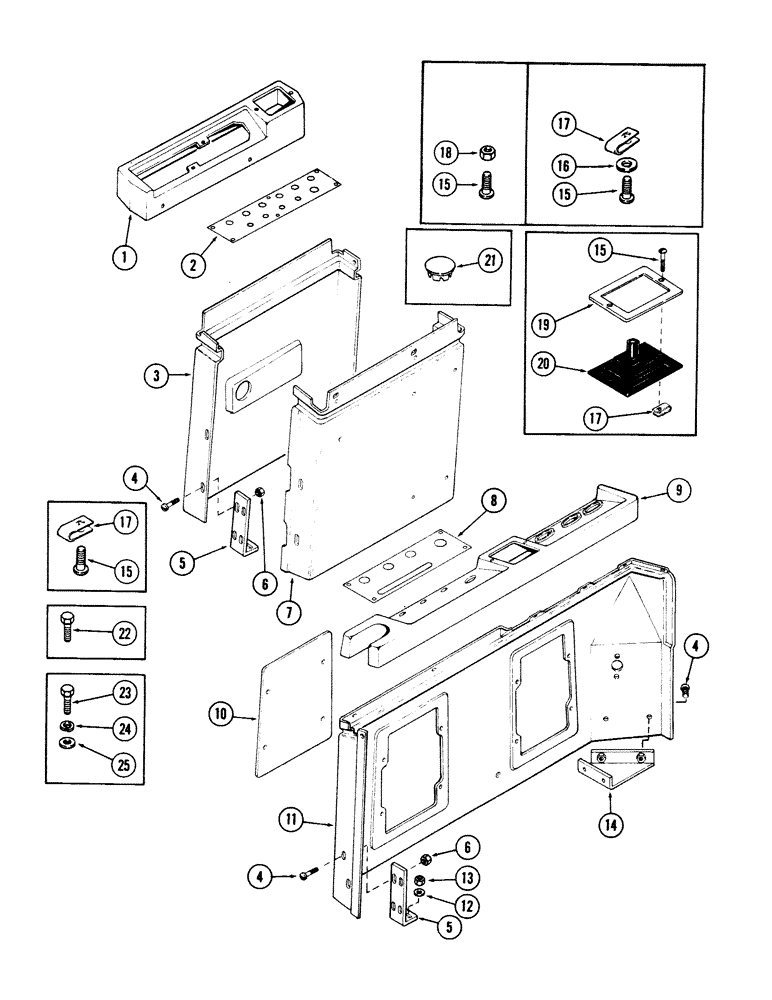

Запчасти Case 50 (4-086) - INSTRUMENT PANELS (04) - ELECTRICAL SYSTEMS

1

S966214

COVER, switch console (Left side)

1шт.

2

REF

INSTRUCTION

DECAL, instrument panel (Left side) (See Figure 9-248)

1шт.

3

S956245

PANEL

outside (Left side)

1шт.

4

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - 1/4" NC x 3/4"

16шт.

5

S239381

BRACKET

2шт.

6

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

10шт.

7

S956238

PANEL

inside (Left Side)

1шт.

8

REF

INSTRUCTION

DECAL, instrument panel (Right Side) (See Figure 9-248)

1шт.

9

S956255

COVER

gauge console (Right Side)

1шт.

10

S514717

COVER

access (Right Side)

2шт.

11

S956254

PANEL, SIDE

(Right Side)

1шт.

12

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 3/8"

5шт.

13

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

14

S514941

BRACKET

1шт.

15

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

machine - No. 10 NC x 3/4"

1шт.

16

F64315

WASHER

- No. 10

1шт.

17

S117167

CLIP

Tinnerman - No. 10 NC

1шт.

18

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

19

S239340

FLANGE

2шт.

20

S615715

BOOT

2шт.

21

353-404

PLUG,Dome, .500" hole, Nylon

Used to plug hole in instrument panel when optional lights or fast hoist is not used Dome, .500" hole, Nylon

2шт.

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8" diameter (used to plug hole in instrument panel when optional cold start is not used)

1шт.

22

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - 1/4" NC x 3/4" Gr 5

1шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

195-2251

WASHER,.281" x 1" x .109"

flat - 9/32"

1шт.
