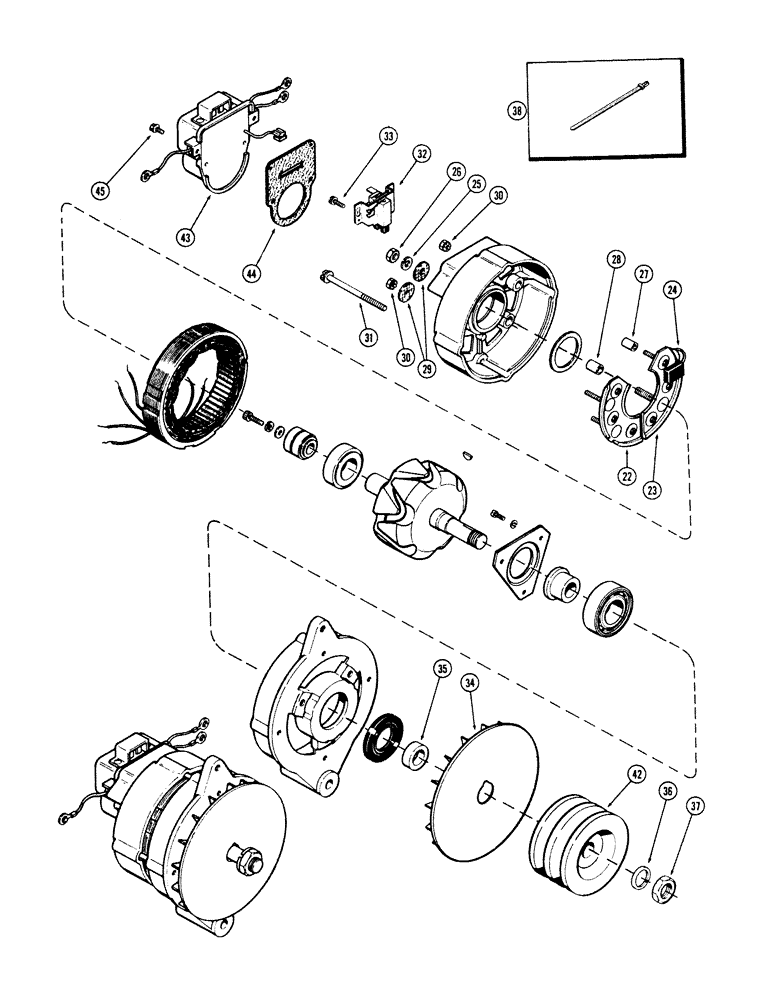

Запчасти Case 50 (4-074) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

22

A47165

DIODE

RECTIFIER ASSEMBLY, negative, w/diodes & studs, Serial Range: (Anode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY, positive, w/diodes & studs, Serial Range: (Cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSEMBLY, trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - No. 10 NC hex

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE, insulator - (1/4 x 5/16 x 1/2")

1шт.

28

A47156

SLEEVE CYLINDER

SLEEVE, insulator - (3/16 x 1/4 x 3/8")

1шт.

29

A47613

WASHER

insulating - (1/4 x 3/4 x 1/16

2шт.

29

A47612

WASHER

insulating - (3/16 x 3/4 x 1/16")

2шт.

30

A41060

LOCK NUT

NUT - No. 10 - 24 hex, w/ext. skpf. washer

3шт.

31

A45030

BOLT

- thru (No. 10 NF x 4")

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - w/holder

1шт.

33

A42431

FAN

SCREW, brush holder to rear housing

2шт.

34

A42431

FAN

ventilating

1шт.

35

A47162

SPACER

fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

37

A41035

NUT

pulley retaining

1шт.

38

T54520

STRAP

WRAP, wire locking (Nylon tie)

2шт.

42

A41361

PULLEY

- used with CASE engine

1шт.

S513579

PULLEY

- used with DETROIT DIESEL engine

1шт.

43

A47167

REGULATOR

ASSEMBLY, voltage

1шт.

44

A47159

GASKET

regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

regulator mounting - (No. 8-32 x 1/2" self tapping)

2шт.

45

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW, regulator mounting - (No. 8-32 x 3/4" sltd. hex washer head)

2шт.
