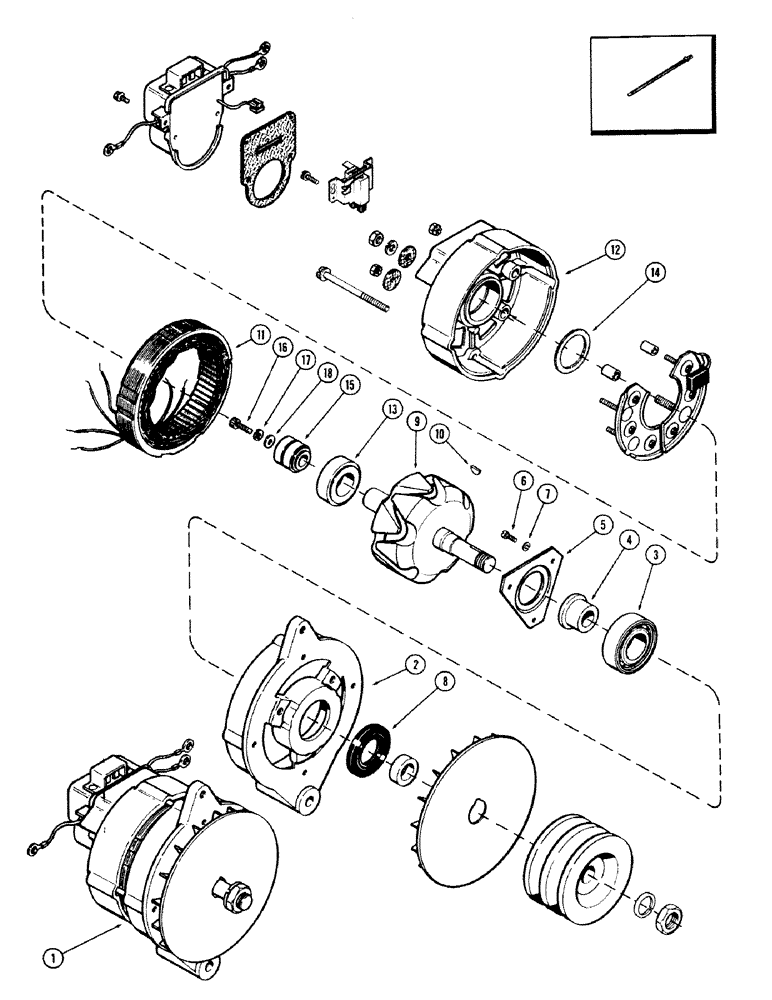

Запчасти Case 50 (4-072) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

R36587

ALTERNATOR

ALTERNATOR ASSEMBLY - (Production Only) - (Motorola No. 8HC3017G) - (Order 1-A47090 alternator, 1-A41361 pulley, 1-A47167 regulator, 1-A47159 regulator gasket, 2 of 187-1089 and 2 of 182-519 regulator mounting screws), Includes: Ref. 2 - 38

1шт.

1

A47090

ALTERNATOR

ALTERNATOR ASSEMBLY - (Service Only) - (Motorola No. 8HC3017GS) - (w/o pulley, regulator, regulator gasket and mounting screws), Includes: Ref. 2 - 38

1шт.

2

A47157

HOUSING

HOUSING, front

1шт.

3

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING, front housing (1 x 2 x 9/16")

1шт.

4

A41052

SLEEVE

SLEEVE, bearing pilot

1шт.

5

A43280

RETAINER

RETAINER, front bearing

1шт.

6

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

SCREW, front retainer - (No. 8-32 x 3/8" sltd. hd)

3шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

8

A47160

SEAL

SEAL, oil grease reservoir (1 x 1-7/8 x 5/16")

1шт.

9

A47166

IMPELLER

ROTOR ASSEMBLY

1шт.

10

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

11

A47155

STATOR

STATOR ASSEMBLY

1шт.

12

A47158

HOUSING

HOUSING, rear

1шт.

13

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, rear housing - (11/16 x 1-9/16 x 1/2")

1шт.

14

A47170

RETAINER

RETAINER, rear bearing - (1-9/16 x 1-13/16 x 1/8")

1шт.

15

A44581

RING

RING, slip - (Order A44580)

1шт.

16

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW, slip ring (No. 10 x 5/8", 12 pt. sckt. head)

1шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

18

A44788

WASHER

WASHER, slip ring bearing screw

1шт.
