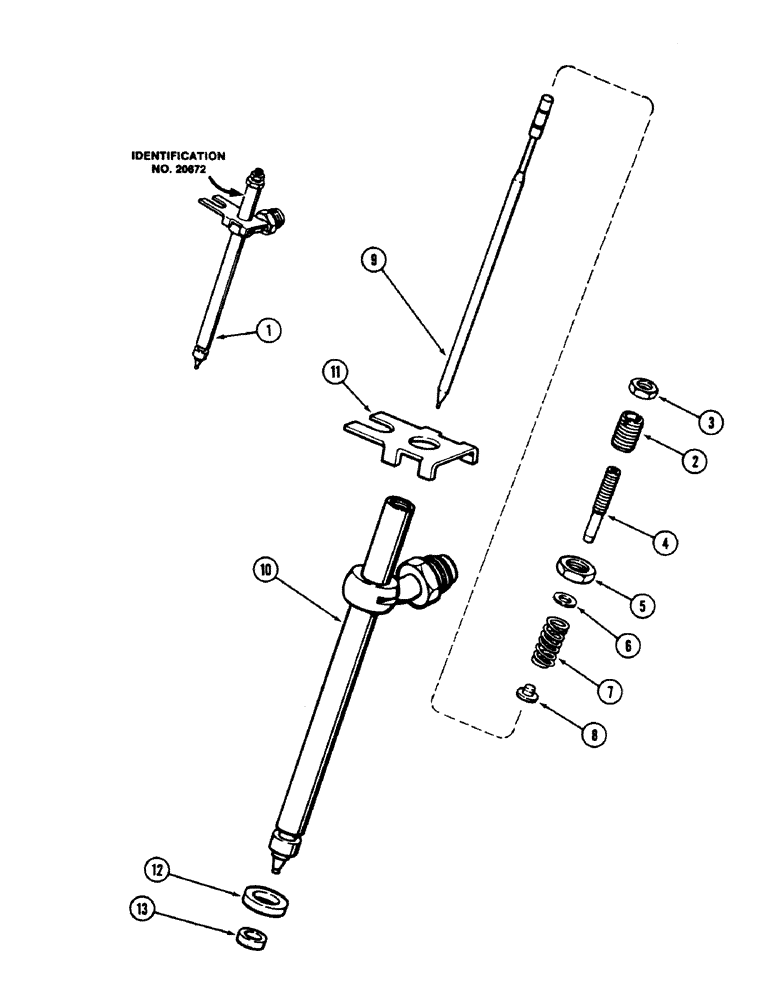

Запчасти Case 50 (3-70) - INJECTOR NOZZLE, 504BDT ENGINE (03) - FUEL SYSTEM

1

A138323

NOZZLE CAP

NOZZLE ASSEMBLY - injection, (Identification no. 20672 on body) (Color code red and white), Includes: Ref. 2 - 6

6шт.

Whenever nozzle is removed from head. The seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

A138323R

REMAN-INJECT NOZZLE

50 CASE SERIES-E CRAWLER EXCAVATOR (S/N 6280543 & AFTER)

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

3

A43602

NUT

- lock, lift adjusting, #10-56 hex

1шт.

4

A45292

SCREW

- pressure adjusting

1шт.

5

A42424

LOCK NUT

- lock, pressure adjusting, 5/16"-48 hex

1шт.

6

A54632

SEAT - upper, pressure adjusting spring

1шт.

7

A45290

SPRING

- pressure, 11/16" (17.46 MM) free length (Green code)

1шт.

8

A45289

SEAT

- lower, pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

11

A41768

PLATE

- locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

Whenever nozzle is removed from head. The seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon

1шт.

Whenever nozzle is removed from head. The seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.
