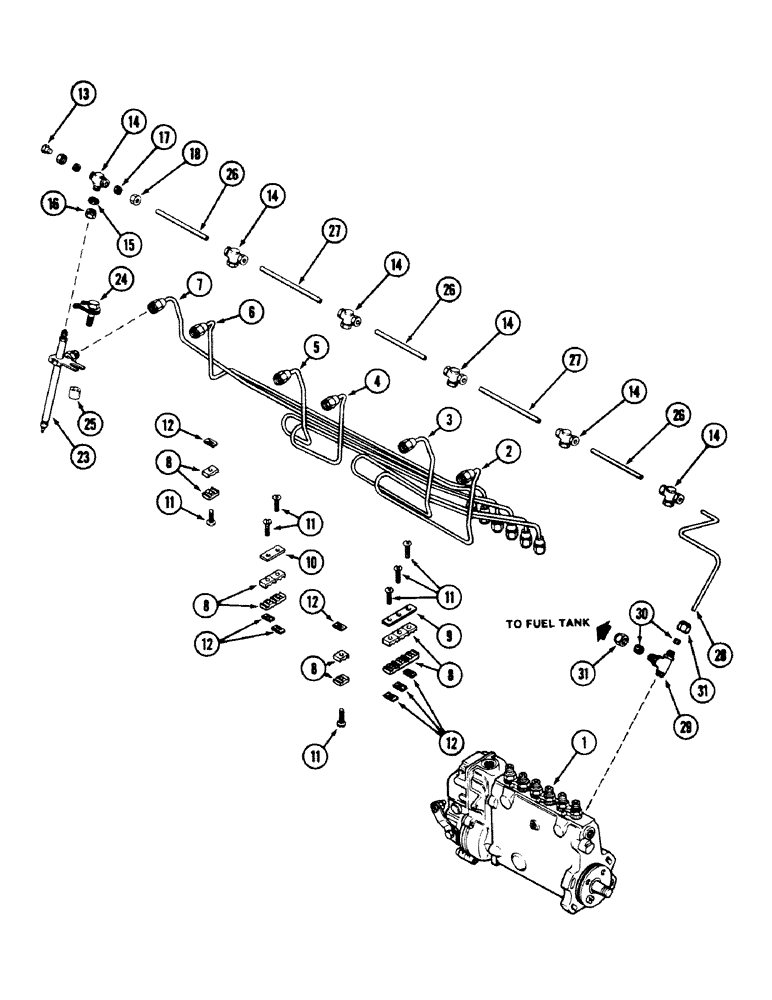

Запчасти Case 50 (3-66) - FUEL INJECTION SYSTEM, 504BDT ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-68)

1шт.

2

A58702

TUBE

- fuel injection, No. 1 cylinder

1шт.

3

A58703

TUBE

- fuel injection, No. 2 cylinder

1шт.

4

A58704

TUBE

- fuel injection, No. 3 cylinder

1шт.

5

A58705

TUBE

- fuel injection, No. 4 cylinder

1шт.

6

A58706

TUBE

- fuel injection, No. 5 cylinder

1шт.

7

A58707

TUBE

- fuel injection, No. 6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (For 6 lines)

1шт.

10

A58710

PLATE

- injection tube bracket (For 4 lines)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" NC hex slotted

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 NC Tinnerman

7шт.

13

47-47

RIVET,FH, 1/4" x 7/16"

- leak-off boot, 1/4 x 7-16" flat head (6.35 x 11.11 MM)

1шт.

14

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE ASSEMBLY - nozzle leak-off

6шт.

15

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

6шт.

16

A58961

NUT

- cap

12шт.

17

222-102

SLEEVE,1/4" Tube

(6.35 mm), Includes Ref. 18 1/4" Tube

12шт.

18

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube (6.35 MM)

12шт.

23

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Figure 3-70)

6шт.

24

A58695

CLAMP

ASSEMBLY - nozzle

6шт.

25

A58696

SPACER

- nozzle clamp

6шт.

26

A58965

TUBE

- leak off, 4-13/16" long (122.17 MM)

3шт.

27

A58964

TUBE

- leak off, 5-57/64" long (149.35 MM)

2шт.

28

A58963

TUBE

- leak-off, No. 1, Serial Range: nozzle-valve

1шт.

29

A59097

VALVE

ASSEMBLY - check, leak-off (In injection pump)

1шт.

30

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

2шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 MM)

2шт.
