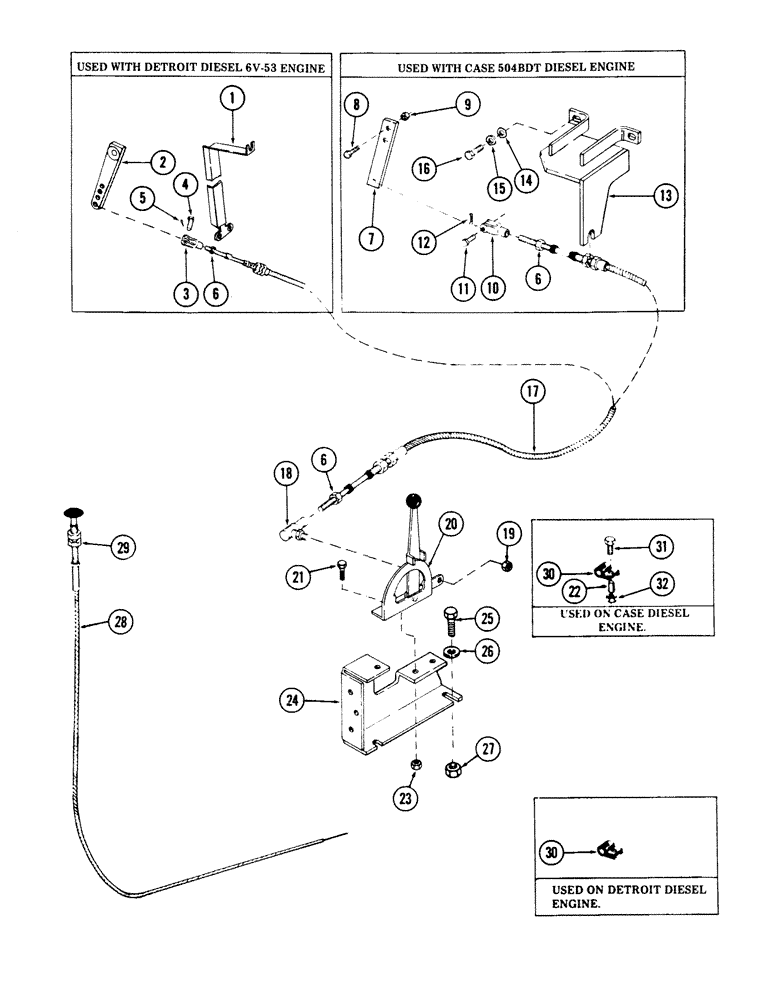

Запчасти Case 50 (3-62) - THROTTLE AND SHUT-OFF CONTROL CABLES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
S227335
BRACKET
cable support, Serial Range: mounts-engine
1шт.
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
(Mounts bracket to engine) Hex, 3/8"-16 x 1 1/2", G5
2шт.
129-164
JAM NUT,Hex, 7/16" - 20, Gr 5
Jam, 7/16"- 20, G5 (Between throttle and pump)
1шт.
2
S211671
LEVER
throttle control, Serial Range: mounts-engine
1шт.
3
S82381
YOKE
1шт.
4
S10736
PIN
clevis - 5/16" x .734" grip length
1шт.
5
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
6
425-154
JAM NUT,Jam, 1/4"-28, G5
2шт.
7
S92444
BAR
LEVER, throttle control, Serial Range: mounts-engine
1шт.
8
113-9
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5
- 1/4" NC x 7/8" Gr 5
2шт.
9
86625061
NUT,1/4"-20, GB
NUT, self locking - 1/4" NC
2шт.
10
213-2
ADJUSTABLE CLEVIS,1/4"-28 x 2"
YOKE
1шт.
11
S10714
CLEVIS PIN
PIN, clevis - 1/4" x .648" grip length
1шт.
13
S505829
BRACKET
cable support, Serial Range: mounts-engine
1шт.
14
195-525
WASHER,3/8", SAE
flat - 7/16"
2шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
16
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
17
S238507
CABLE
throttle
1шт.
18
A10329
BALL JOINT,1/4" - 28 x 1"
JOINT, ball
1шт.
19
131-498
LOCK NUT,1/4"-28, GB
NUT, self locking - 1/4" NF
1шт.
20
S514567
LEVER
throttle
1шт.
21
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
22
S115078
SPACER
tube
2шт.
23
86625061
NUT,1/4"-20, GB
NUT, self locking - 1/4" NC
2шт.
24
S514582
BRACKET
ANGLE, throttle lever mounting
1шт.
25
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3шт.
26
195-104
WASHER,3/8"
flat - 3/8"
3шт.
27
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
3шт.
28
S231430
CABLE
control - (For engine shut-off) (Use on CASE engines)
1шт.
29
195-525
WASHER,3/8", SAE
flat - 5/16"
2шт.
30
T41928
CLAMP,3/16", Insul, 1/4" Bolt
- (Used with shut-off cable)
1шт.
31
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
32
86625061
NUT,1/4"-20, GB
NUT, self locking - 1/4" NF
1шт.
Выбрано товаров: 34
