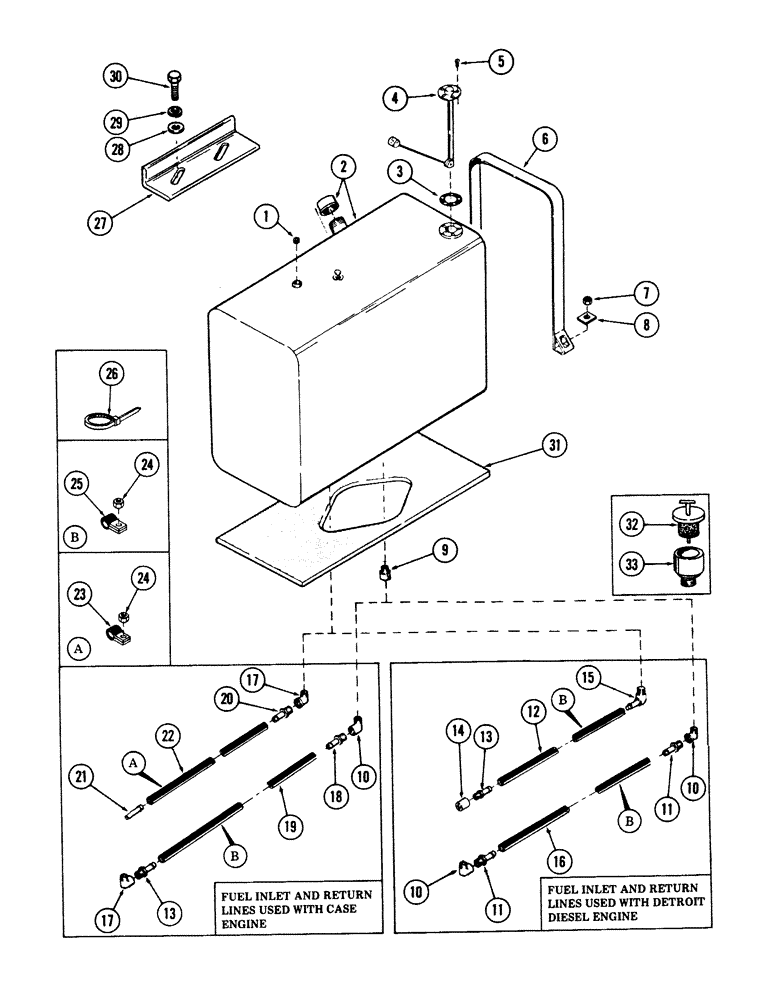

Запчасти Case 50 (3-60) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, 1/4" NPT

1шт.

2

S514118

FUEL TANK

TANK - fuel, Includes: Ref. 3

1шт.

3

A18870

FILLER CAP

CAP - fuel tank

1шт.

4

S239445

ELECTRICAL GAUGE

GAUGE - fuel tank

1шт.

5

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- machine, No. 10 x 3/4" NF

5шт.

6

S93863

STRAP

- mounting, fuel tank

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

4шт.

8

S108148

SPACER

4шт.

9

217-81

VALVE

- shut-off

1шт.

10

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degrees, 3/8" NPT, into tank

1шт.

11

220-4

FITTING

END - hose, fits 1/2" ID x 3/8 NPT

2шт.

12

REF

INSTRUCTION

HOSE - fuel line, return, 110" (2794 MM) long cut from S118400

1шт.

13

220-3

FITTING

END - hose, fits 3/8" ID hose x 1/4" NPT

1шт.

14

221-336

COUPLING,Pipe, 1/4" NPT

1шт.

15

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

- 90 degrees, fits 3/8" ID hose x 1/4" NPT, into tank

1шт.

16

REF

INSTRUCTION

HOSE - fuel line, inlet line, 128" (3251.2 MM) long cut from S118466

1шт.

17

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degrees, 1/4" NPT, into tank

2шт.

18

220-7

FITTING

END - hose, fits 3/8" ID hose x 3/8" NPT

1шт.

19

REF

INSTRUCTION

HOSE - fuel line, inlet line, 116" (2946.4 MM) long cut from S118400

1шт.

20

220-2

FITTING

END - hose, fits 1/4" ID hose, into engine

1шт.

22

REF

INSTRUCTION

HOSE - fuel line, return line, 116" (2946.4 MM) long cut from S118378

1шт.

23

S77322

CLAMP

- hose

1шт.

24

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

1шт.

25

49885

CLAMP

- hose

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

27

S238105

ANGLE

- mounting, fuel tank

1шт.

28

S95569

WASHER

- flat, 1/2"

2шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

30

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

31

S224325

PAD

- fuel tank

1шт.

32

S236763

PLUG

- filler

1шт.

33

S236764

PIPE

- filler

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Fuel line 0.38" ID x 300.00"

1шт.

S118466

HOSE,0.50" ID x 300.00"

- Fuel line 0.50" ID x 300.00"

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3 - Fuel line

1шт.
