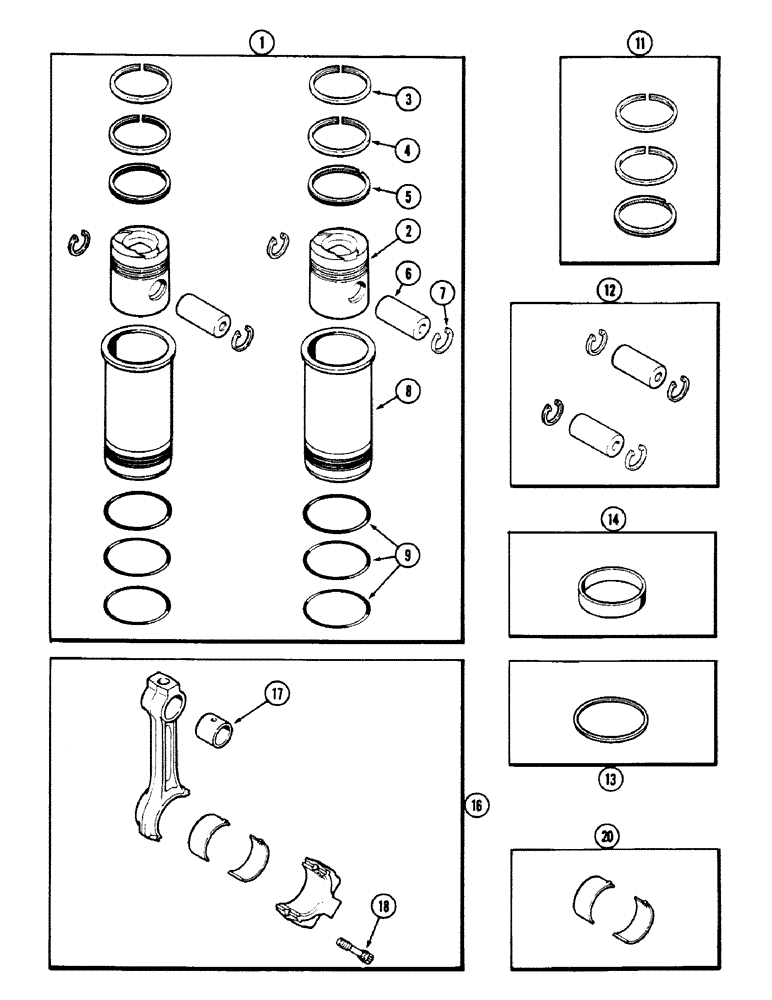

Запчасти Case 50 (2-52) - PISTON ASSEMBLY, 504BDT ENGINE (02) - ENGINE

1

A152177

SET

PISTON ASSEMBLY (Set of 2), Includes Ref. 2 - 9

3шт.

2

A146697

PISTON

PISTON - 4-5/8" (117.47 MM) Diameter

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order ref 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order ref 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order ref 11)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, three groove

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - 4-3/4 x 5 x 1/8" (120.65 x 127.0 x 3.17 MM)

6шт.

11

A44054

RING

RING KIT - replacement (Set of 1)

6шт.

12

NSS

NOT SOLD SEPARAT

PIN KIT - piston (Order 2 A44249 pins and 4 A58584 retainer rings)

3шт.

13

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 MM) (Repairs only)

1шт.

13

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 MM) (Repairs only)

1шт.

14

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

16

A65032

ROD

ROD ASSEMBLY - connecting, Includes Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core-Connecting Rod Return Part Number

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap to rod, connecting

2шт.

20

A41758

BEARING LINER

LINER KIT - rod bearing (Set of 2) Standard, connecting

6шт.

20

A41899

BEARING LINER

LINER KIT - rod bearing (Set of 2) 0.002" (0.0508 MM) Undersize, connecting

6шт.

20

A41900

BEARING LINER

LINER KIT - rod bearing (Set of 2) 0.010" (0.254 MM) Undersize, connecting

6шт.

20

A41901

BEARING LINER

LINER KIT - rod bearing (Set of 2) 0.020" (0.508 MM) Undersize, connecting

6шт.

20

A41902

BEARING LINER

LINER KIT - rod bearing (Set of 2) 0.030" (0.762 MM) Undersize, connecting

6шт.
