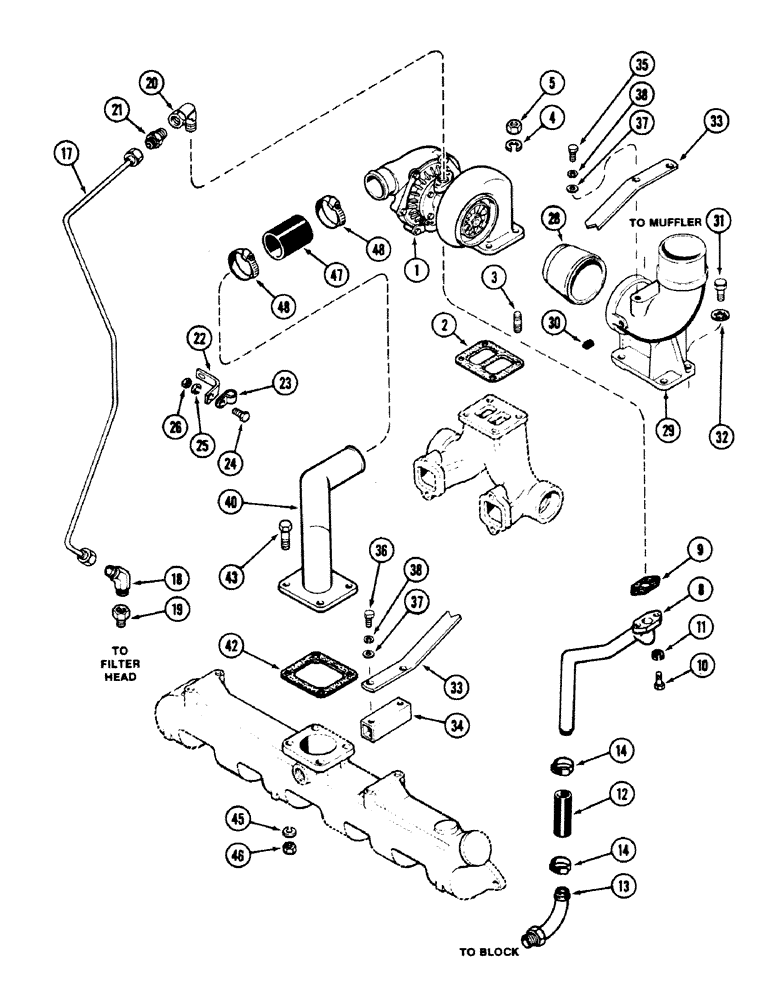

Запчасти Case 50 (2-36) - TURBOCHARGER SYSTEM, 504BDT ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY (See Figure 2-38)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- 3/8" NC x 1-1/2"

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seez-Pruf

4шт.

8

A62518

TUBE

- oil drain

1шт.

9

A58892

GASKET,1.59mm Thk

- drain tube flange

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

A58893

HOSE

- drain tube, 7/8 ID x 3-1/2" long (22.23 x 88.9 M)

1шт.

13

A58897

FITTING

-, Serial Range: hose-block

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

17

A153800

TUBE

- oil supply

1шт.

18

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 3/8" tube x 1/4" PT, 45 degrees

1шт.

19

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- tube to filter head, 3/8 to 1/4" PT

1шт.

20

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 1/4" PT, 90 degrees

1шт.

21

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - straight, 3/8" tube x 1/4" PT

1шт.

22

A75301

BRACKET

- tube support, oil supply

1шт.

23

49845

CLAMP

- tube

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

A65554

TUBE

CONNECTOR - turbocharger to exhaust elbow

1шт.

29

A61941

ELBOW

- exhaust

1шт.

30

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" PT square head

1шт.

31

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

A61944

BRACE

- elbow to intake manifold

1шт.

34

A67057

SPACER

-, Serial Range: brace-manifold

1шт.

35

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

37

95-6

WASHER,3/8"

- 7/16 x 1 x 1/16" (11.11 x 25.4 x 1.59 mm)

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

A150450

ELBOW

- intake

1шт.

42

A58910

GASKET

- intake, Serial Range: elbow-manifold

1шт.

43

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

47

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2.00" ID x 2.88"

1шт.

48

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.15 mm) #28, 1.31/2.25 Type F Worm

2шт.
