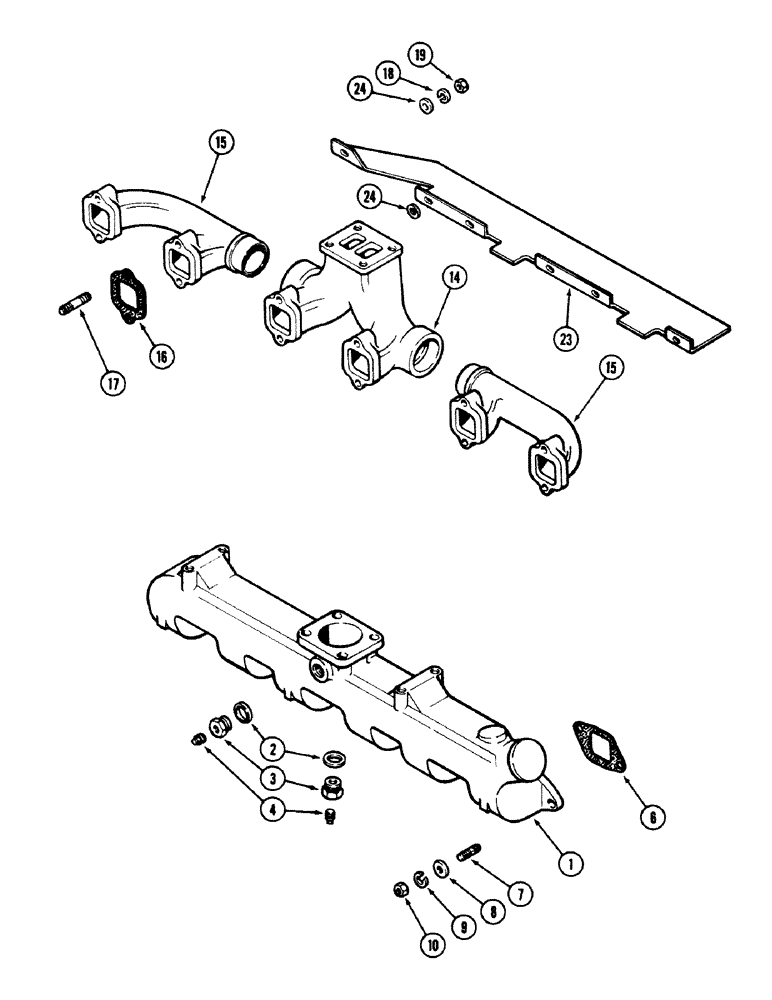

Запчасти Case 50 (2-34) - INTAKE MANIFOLD, 504BDT ENGINE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake, Includes Ref. 2 - 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

- heater opening

2шт.

4

221-1849

PLUG

- pipe, 1/8" PT hex socket head

2шт.

6

A58662

MANIFOLD GASKET

-, Serial Range: manifold-head

6шт.

7

A59077

STUD

- manifold to head, 3/8" NC x 1-3/4"

12шт.

8

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 MM)

12шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

12шт.

14

A76322

MANIFOLD

- center section, exhaust

1шт.

15

A65917

MANIFOLD

- end section, exhaust

2шт.

16

A58895

GASKET

- manifolds to head, exhaust

6шт.

17

A140924

STUD

- manifolds to head, 3/8" NC x 2-7/16", exhaust

12шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Exhaust manifold 3/8"

12шт.

19

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seez-Pruf, exhaust manifold

12шт.

23

A76351

GUARD

SHIELD - heat, exhaust manifold

1шт.

24

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 MM), exhaust manifold

6шт.
