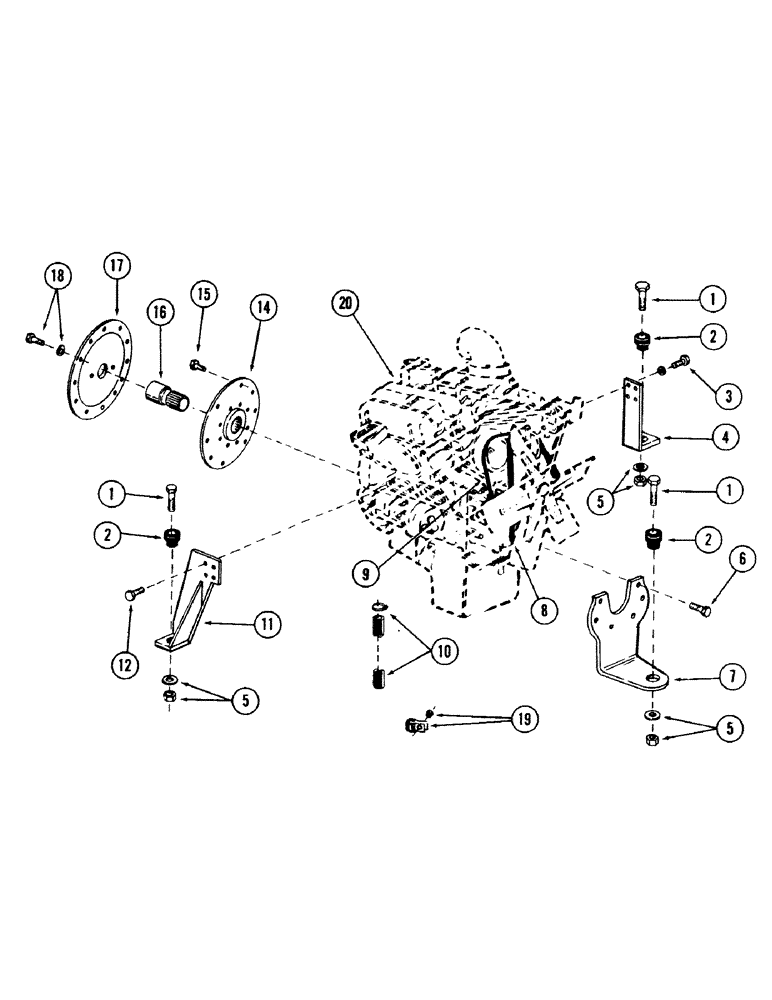

Запчасти Case 50 (2-26) - DETROIT DIESEL 6V-53 ENGINE AND MOUNTING PARTS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
13-1268
BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5
- 3/4" NC x 4-1/4" Gr 5
3шт.
2
A19066
MOUNTING PARTS
MOUNT, rubber
3шт.
3
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
4
S506065
BRACKET
rear engine mounting - (Left hand)
1шт.
5
195-2270
WASHER,13/16" x 3" x .238", HDN
snubbing - 3/4"
3шт.
131-450
NUT,3/4"-10
NUT, self locking - 3/4" NC
3шт.
6
113-311
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
6шт.
7
S505886
BRACKET
front engine mounting
1шт.
8
S116164
BELT,0.50" W x 42.00" L
SET OF BELTS , V-BELT, Fan (Matched set of 2) 0.50" W x 42.00" L
1шт.
9
S211672
BELT
SET OF BELTS, V- Belt, Alternator (Matched set of 2)
1шт.
10
REF
INSTRUCTION
HOSE, low pressure - onto engine breather tube - 30" (762 MM) long - cut from S118383
1шт.
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP, hose
1шт.
11
S613277
BRACKET, rear engine mounting - (Right hand)
1шт.
12
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
13
S614154
ENGINE, DETROIT DIESEL 6V-53
1шт.
14
S513495
PLATE
DAMPENER, pump drive
1шт.
15
121-204
BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8
shoulder - 3/8" NC x 5/8" Gr 8
8шт.
16
S229599
DRIVE SHAFT
COUPLING
1шт.
17
S52615
MOUNTING PARTS
MOUNTING, hydraulic pump
1шт.
18
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
10шт.
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
12шт.
19
S86530
CLAMP
, Serial Range: hose-turntable
1шт.
131-52
NUT,3/8"-16, GC
NUT, self locking - 3/8" NC
1шт.
20
S97540
FAN
SPACER, fan - (Not shown)
2шт.
113-111
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
(Mounts spacer behind fan blower) - (Not shown) Hex, 5/16"-18 x 2 1/2", G5
6шт.
21
L31230
ELEMENT
oil filter - (Not shown)
1шт.
S105493
ELEMENT
fuel strainer - (Not shown)
1шт.
S105610
ELEMENT
fuel filter - (Not shown)
1шт.
S118383
HOSE,1.00" ID x 192.00", SAE 100R3
1.00" ID x 192.00" Bulk, SAE 100R3 - Low pressure
1шт.
Выбрано товаров: 30
