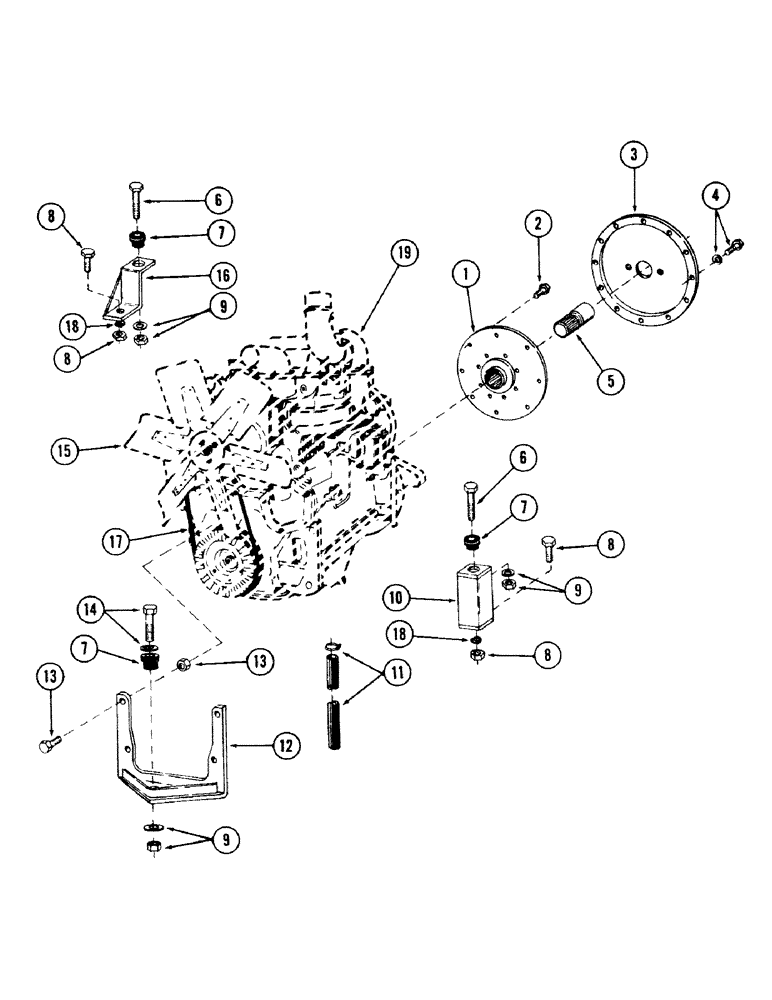

Запчасти Case 50 (2-24) - CASE 504BDT DIESEL ENGINE AND MOUNTING PARTS (02) - ENGINE

1

S510340

DRIVE PLATE

PLATE - drive

1шт.

2

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- 3/8" x 5/8" NC hex (Grade 5)

8шт.

3

S52615

MOUNTING PARTS

MOUNTING - hydraulic pump

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

5

S229599

DRIVE SHAFT

SHAFT - drive

1шт.

6

15-1284

BOLT

- 3/4" x 5-1/4" NC hex (Grade 5)

2шт.

7

S112578

MOUNTING PARTS

MOUNT - rubber

3шт.

8

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

131-450

NUT,3/4"-10

NUT - self locking, 3/4" NC

2шт.

9

195-2270

WASHER,13/16" x 3" x .238", HDN

- snubbing

3шт.

131-450

NUT,3/4"-10

NUT - self locking, 3/4" NC

3шт.

10

S232820

BRACKET

- engine mounting, L.H.

1шт.

11

REF

INSTRUCTION

HOSE - low pressure, onto engine breather tube, 40" (1016 MM) long, cut from S118383

1шт.

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

12

S229621

BRACKET

- front engine mounting

1шт.

13

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

131-450

NUT,3/4"-10

NUT - self locking, 3/4" NC

4шт.

14

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" x 4-1/4" NC hex (Grade 5)

1шт.

195-45

WASHER,3/4"

1шт.

15

S231769

FAN

- pusher

1шт.

A61283

BUSHING

SPACER - fan

1шт.

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 1-1/2" NC hex (Grade 5)

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

S232821

BRACKET

- engine mounting, RH

1шт.

17

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Alternator (Matched set of 2) 0.69" W x 60.00" L

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, 3/4"

2шт.

19

A139532

ENGINE ASSEMBLY

ENGINE - CASE 504BDT diesel (See Figures 2-28 thru 2-58 and 3-64 thru 3-70)

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3 - Low pressure

1шт.
