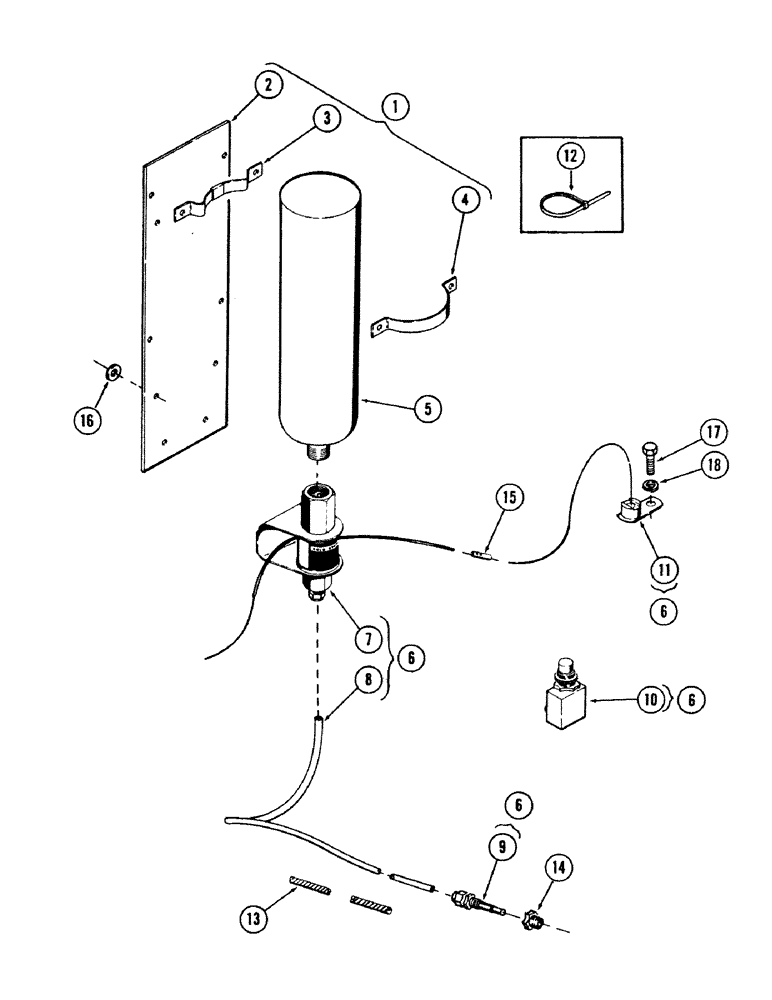

Запчасти Case 50 (2-18) - COLD WEATHER STARTING KIT (02) - ENGINE

S205216

THERMOSTART

KIT - cold weather starting, Includes Ref. 1 - 11

1шт.

1

S116432

PLATE

- mounting assembly (Includes all required hardware), Includes Ref. 2 - 11

1шт.

2

S116433

PLATE

1шт.

3

S116435

BRACKET - cylinder mount

2шт.

4

S116434

CLAMP

- cylinder

2шт.

5

D55767

CYLINDER

- cold start refill

1шт.

6

NSS

NOT SOLD SEPARAT

KIT - cold start accessory (Order components)

1шт.

7

S96079

VALVE

- cold start acutator

1шт.

L35283

PACKAGE, REPAIR

KIT - acutator

1шт.

8

L35281

TUBE,0.125" OD x 60" L

- nylon, 1/8" OD x 60" (1524 MM) long

1шт.

9

S116437

JET

ASSEMBLY

1шт.

10

S116439

SWITCH

- electric push button

1шт.

11

S116438

CASE

THERMOSTAT - circuit breaking

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

13

REF

INSTRUCTION

LOOM - over tube for protection - 80" (2032 M) long - cut from S118377)

1шт.

14

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4" NPT male x 1/8" NPT female into engine (Used with CASE 504BDT diesel engines)

1шт.

15

223-250

ROD, CONNECTING

CONNECTOR - electrical, female

3шт.

16

195-102

WASHER,1/4"

- flat (Used as spacers)

1шт.

17

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street (On cold start bottle) (Not Shown) 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

S118377

LOOM

- 240" (6096 MM) Long

1шт.
