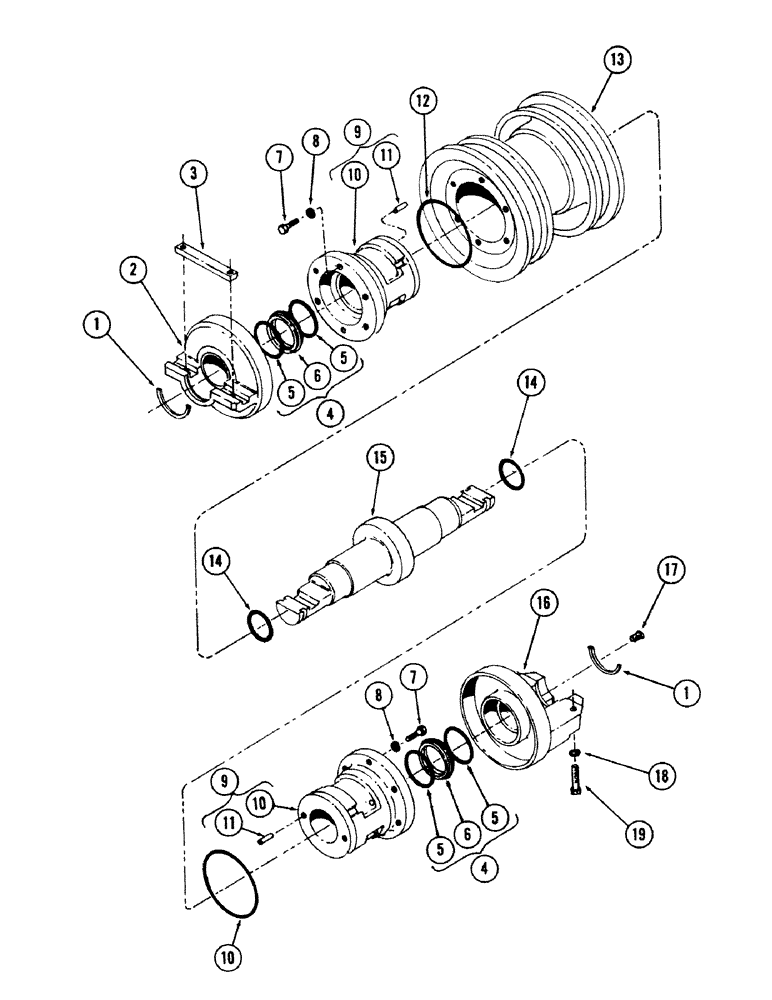

Запчасти Case 50 (5-120) - DOUBLE FLANGE TRACK ROLLER, TYPE C (11) - TRACKS/STEERING

S507721

ROLLER

- track, double flange, Includes: Ref. 1 - 19

1шт.

1

S89317

RING, LOCKING

RING - snap, Serial Range: (Shaft-collars)

2шт.

2

S89309

COLLAR

1шт.

3

S89310

LOCK

1шт.

4

S95098

SEAL

GROUP, Includes: Ref. 5 and 6

2шт.

5

S97896

RING

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

7

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- 3/8" x 1-1/8" NC hex (Grade 5)

12шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

9

S89315

BUSHING

ASSEMBLY, Includes: Ref. 10 and 11

2шт.

10

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

11

S89318

PIN

2шт.

12

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

2шт.

13

S97793

RIM

1шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1.859" ID x 2.125" OD (Collar to shaft)

2шт.

15

S89316

SHAFT

1шт.

16

S89314

COLLAR

- outer

1шт.

17

S87854

PLUG

- pipe, 3/4" - 16

1шт.

18

S97895

WASHER

1шт.

19

S97894

CAPSCREW

BOLT

4шт.
