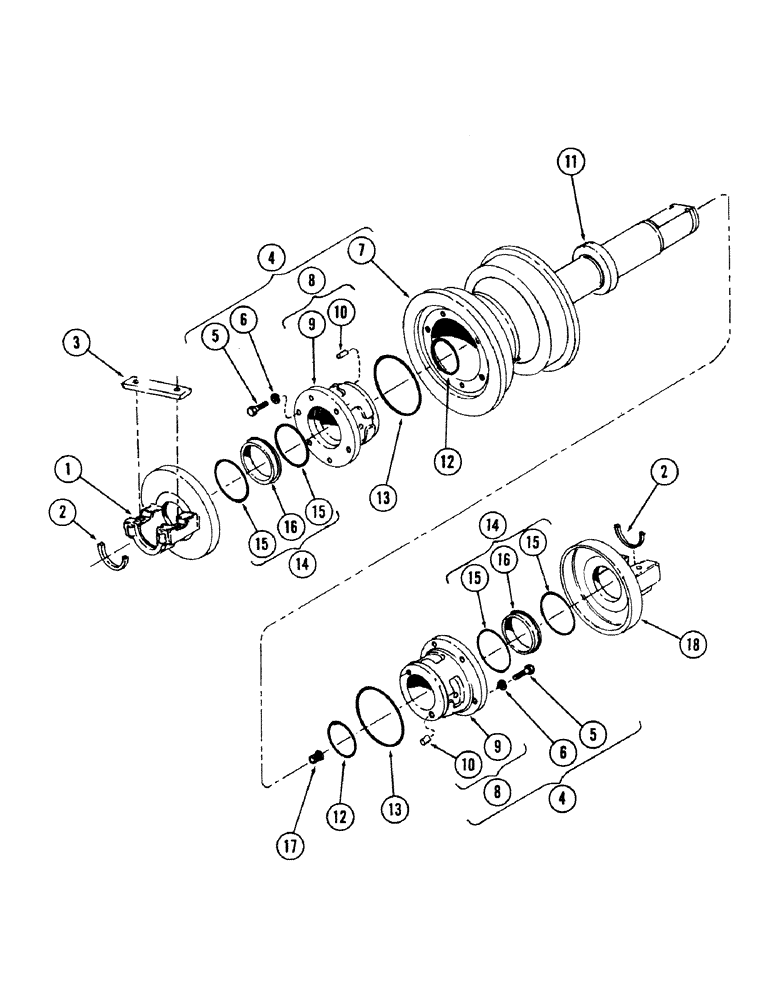

Запчасти Case 50 (5-112) - SINGLE FLANGE TRACK ROLLER, TYPE B (11) - TRACKS/STEERING

S505093

ROLLER

- track, single flange, Includes: Ref. 1 - 18

20шт.

1

S89309

COLLAR

- inner

1шт.

2

S89317

RING, LOCKING

RING - snap, Serial Range: shaft-collars

2шт.

3

S89310

LOCK

1шт.

4

S89307

RIM

ROLLER ASSEMBLY, Includes: Ref. 5 - 10

1шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

- 3/8" x 1-1/8" NC hex (Grade 5)

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

S89307

RIM

ASSEMBLY

1шт.

8

S89315

BUSHING

ASSEMBLY, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

10

S89318

PIN

1шт.

11

S89316

SHAFT

1шт.

12

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1.859" ID x 2.125" OD - collar to shaft

2шт.

13

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 2.234" ID x 2.500" OD - bushing seal

2шт.

14

S90508

SEAL

GROUP, Includes: Ref. 15 and 16

2шт.

15

S97896

RING

O-RING

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

S87854

PLUG

- pipe, 3/4" - 16 male

1шт.

18

S89314

COLLAR

- outer

1шт.
