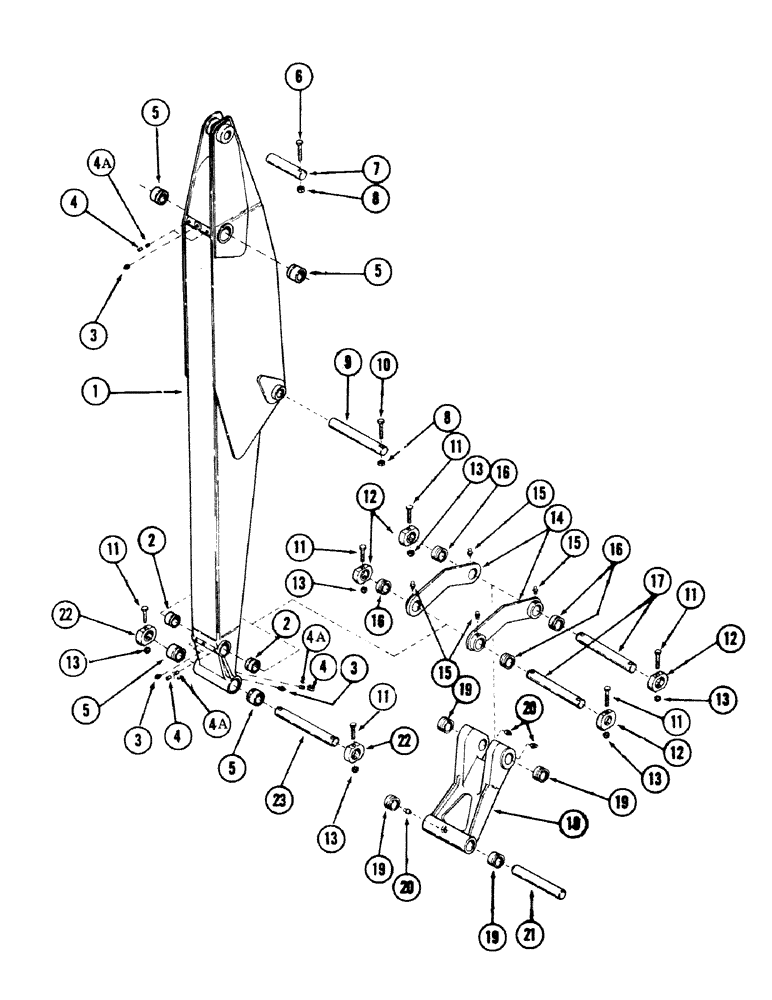

Запчасти Case 50 (9-280) - DIPPERSTICK AND ATTACHING LINKS WITH PINS (09) - CHASSIS

1

S954595

DIPPER

STICK - 9' 0" (2.74 M), Includes: Ref. 2 - 5

1шт.

S954594

DIPPER

STICK - 10' 5" (3.20 M), Includes: Ref. 2 - 5

1шт.

S954593

DIPPER

STICK - 12' 0" (3.66 M), Includes: Ref. 2 - 5

1шт.

2

S229548

BUSHING

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

3шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8" (Cup point) (Top)

1шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - SET, 3/8" NC x 3/8" (Cone point) (Bottom)

1шт.

5

S229565

BUSHING

4шт.

6

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

BOLT - 1/2" x 5-3/4" NC hex (Grade 8)

1шт.

7

S230530

PIN - (Crowd cylinder rod, Serial Range: end-dipperstick)

1шт.

8

131-70

NUT,1/2"-13, GB

NUT - 1/2" NC

2шт.

9

S230474

PIN

- (Tool cylinder base, Serial Range: end-dipperstick)

1шт.

10

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

1шт.

11

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

6шт.

12

S117143

COLLAR

4шт.

13

131-70

NUT,1/2"-13, GB

NUT - self locking, 1/2" NC

6шт.

14

S229605

LINK, Includes: Ref. 15 and 16

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" NPT straight

2шт.

16

S229548

BUSHING

2шт.

17

S234223

PIN

- (Link to dipperstick and tool cylinder rod end and attachment link to, Serial Range: link-link)

2шт.

18

S510336

LINK

- attachment, Includes: Ref. 19 and 20

1шт.

19

S229548

BUSHING

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

3шт.

21

S229561

PIN

- (Attachment, Serial Range: link-attachment)

1шт.

22

S117144

COLLAR

2шт.

23

S229550

PIN

-, Serial Range: (Dipperstick-attachment)

1шт.

24

S111775

WASHER

- (For pin joints) - 2-1/2" ID x 4" OD - (1/8" thickness) (Not shown)

1шт.

25

S111776

WASHER

- (For pin joints) - 3-1/16" ID x 5" OD - (1/8" thickness) - (Not shown)

1шт.
