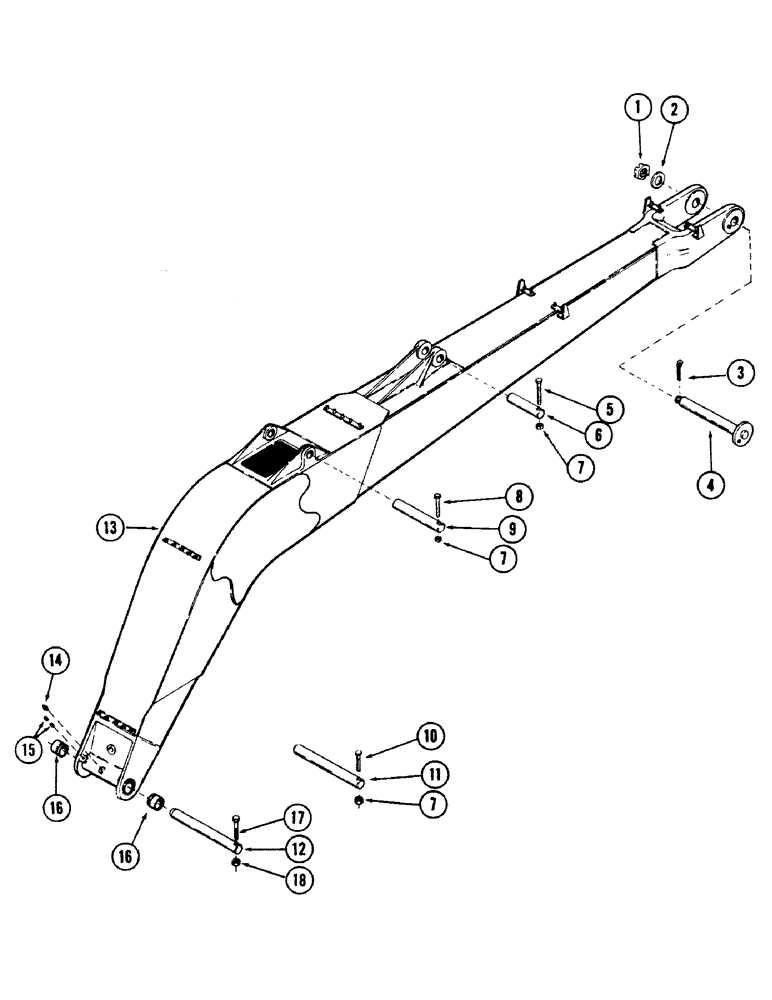

Запчасти Case 50 (9-278) - MAIN "E" BOOM AND PINS (09) - CHASSIS

1

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - slotted, 2" NC

1шт.

2

S110511

WASHER

- flat

1шт.

3

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

4

S235688

PIN ASSY.

PIN -, Serial Range: (Boom-dipper)

1шт.

5

26-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 8

- 1/2" x 7" NC hex (Grade 8)

1шт.

6

S230531

PIN - (Crowd cylinder base, Serial Range: end-boom)

1шт.

7

131-70

NUT,1/2"-13, GB

NUT - self locking, 1/2" NC

3шт.

8

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

BOLT - 1/2" x 6" NC hex (Grade 8)

1шт.

9

S230475

PIN

- hoist cylinder base, Serial Range: end-turntable

1шт.

10

26-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

- 1/2" x 6" NC hex (Grade 8)

1шт.

11

S237429

PIN

- (Hoist cylinder base, Serial Range: end-turntable)

1шт.

12

S233786

PIN

-, Serial Range: (Boom-turntable)

1шт.

13

S956021

BOOM

"E"BOOM - main, Includes: Ref. 14 - 16

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

1шт.

15

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8" (Cone point) - (Bottom)

2шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8" (Cup point) (Top)

2шт.

16

S229565

BUSHING

2шт.

17

S83936

PIN

- clevis, 3/4" x 6.266" grip length

1шт.

18

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.
