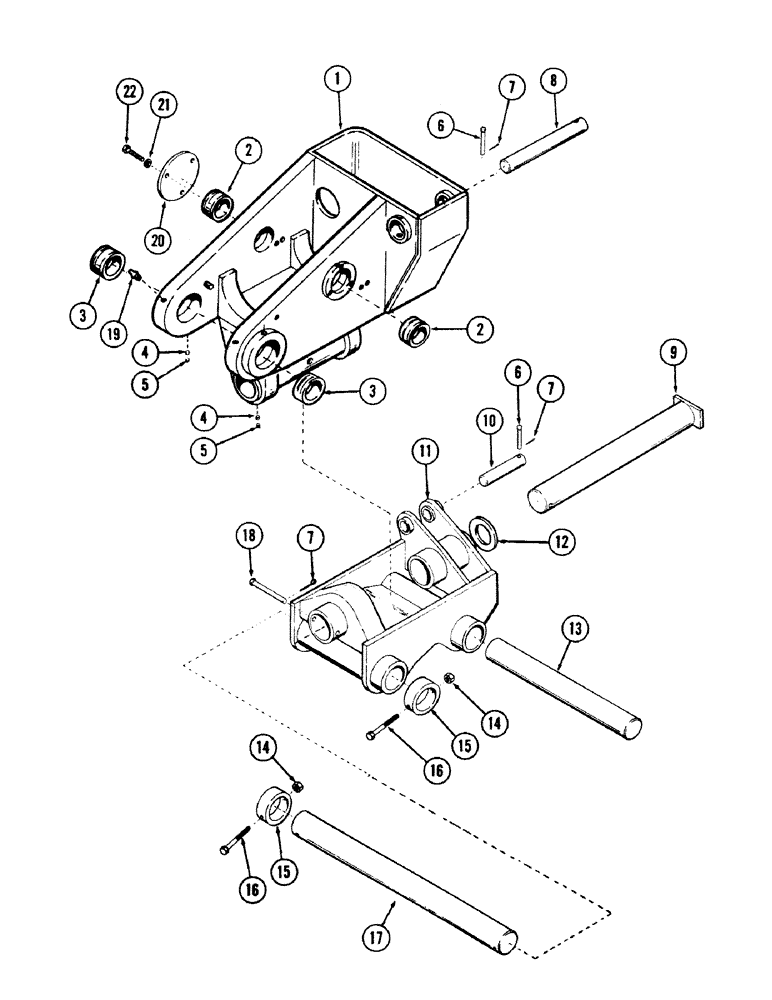

Запчасти Case 50 (9-276) - WRIST-O-TWIST (09) - CHASSIS

1

S614180

FRAME - wrist-o-twist upper, Includes: Ref. 2 - 5

1шт.

2

S234928

BUSHING

- upper frame

2шт.

3

S229392

BUSHING

- upper frame

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" x 3/8" NC (Cone point)

2шт.

5

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set

2шт.

6

S10784

PIN

- clevis, 3/8" x 3.02" grip length

2шт.

7

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

5шт.

8

S237768

PIN

- wrist-o-twist cylinder, Serial Range: base-frame

1шт.

9

S237765

PIN - frame assy to hinge assy

1шт.

10

NLS

NO LONGER SERVICED

- wrist-o-twist cylinder rod, Serial Range: end-frame

1шт.

11

S614169

HINGE

1шт.

12

S112015

WASHER

- shim

1шт.

13

S229561

PIN

-, Serial Range: bucket-hinge

1шт.

14

131-70

NUT,1/2"-13, GB

NUT - lock, 1/2" NC hex

2шт.

15

S117144

COLLAR

2шт.

16

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

17

S229550

PIN

-, Serial Range: bucket-hinge

1шт.

18

S61976

CLEVIS PIN

PIN - clevis, 5/8"

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

5шт.

20

S106642

COVER

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.
