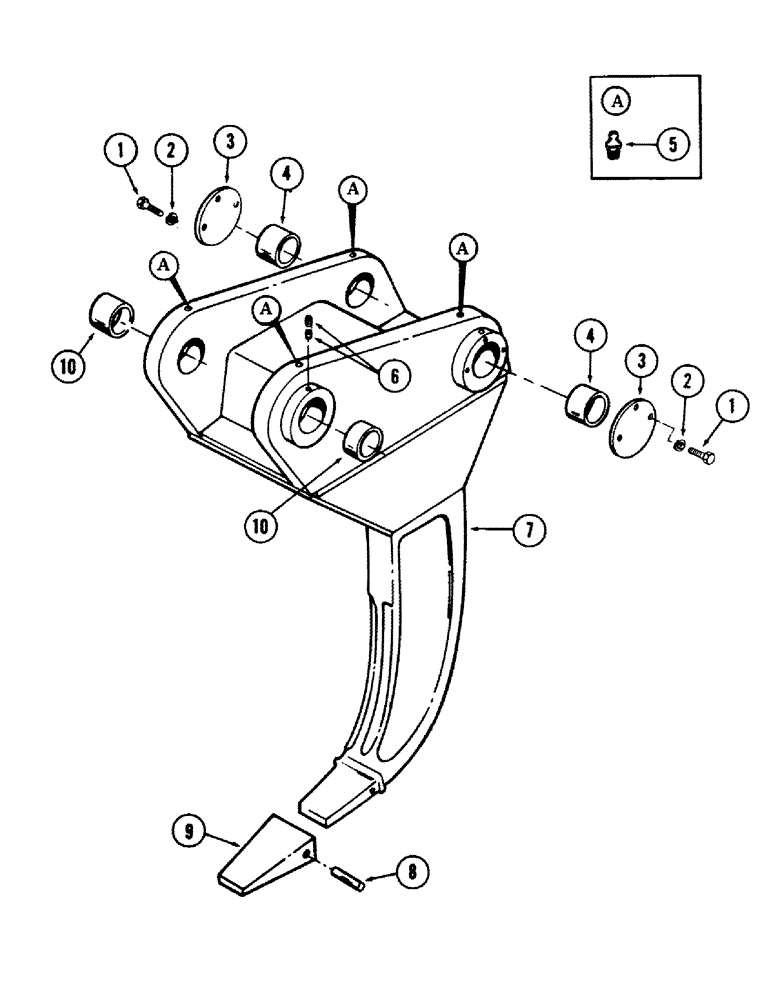

Запчасти Case 50 (9-274) - RIPPER TOOTH (09) - CHASSIS

1

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" NC hex (Grade 8)

6шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

S106642

COVER

2шт.

4

S234928

BUSHING

- 2-1/2"

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

4шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8"

4шт.

7

S609798

RIPPER TOOTH, Includes: Ref. 8 and 9

1шт.

8

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

9

S25334

POINT

TIP - replaceable

1шт.

10

S229392

BUSHING

- .3"

2шт.
