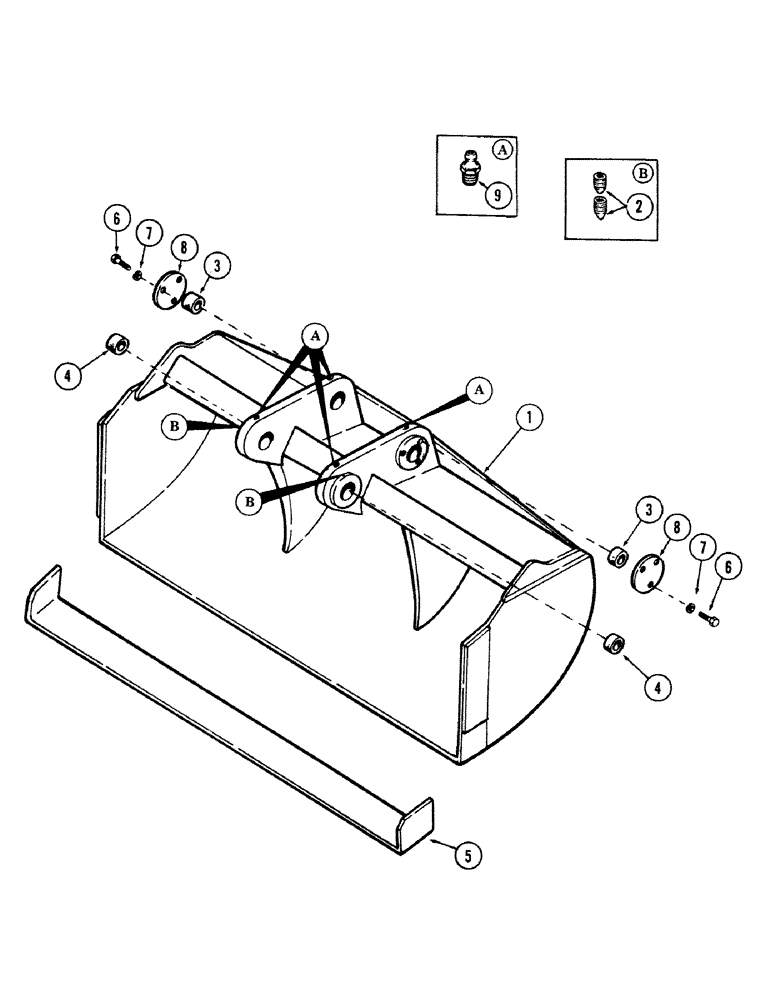

Запчасти Case 50 (9-272) - 60" DITCH BUCKET (09) - CHASSIS

1

BUCKET - ditch, 60" (1524 MM) - (Order from Machinery Price List), Includes: Ref. 2 - 5

1шт.

2

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 1/2" x 3/4" NC (Cone point)

2шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" x 3/8" NC (Cup point)

2шт.

3

S234928

BUSHING

2шт.

4

S229392

BUSHING

2шт.

5

S237845

EDGE

- cutting, 60" (1524 MM)

1шт.

6

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" NC hex (Grade 8)

6шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

S106642

COVER

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" PT straight

4шт.
