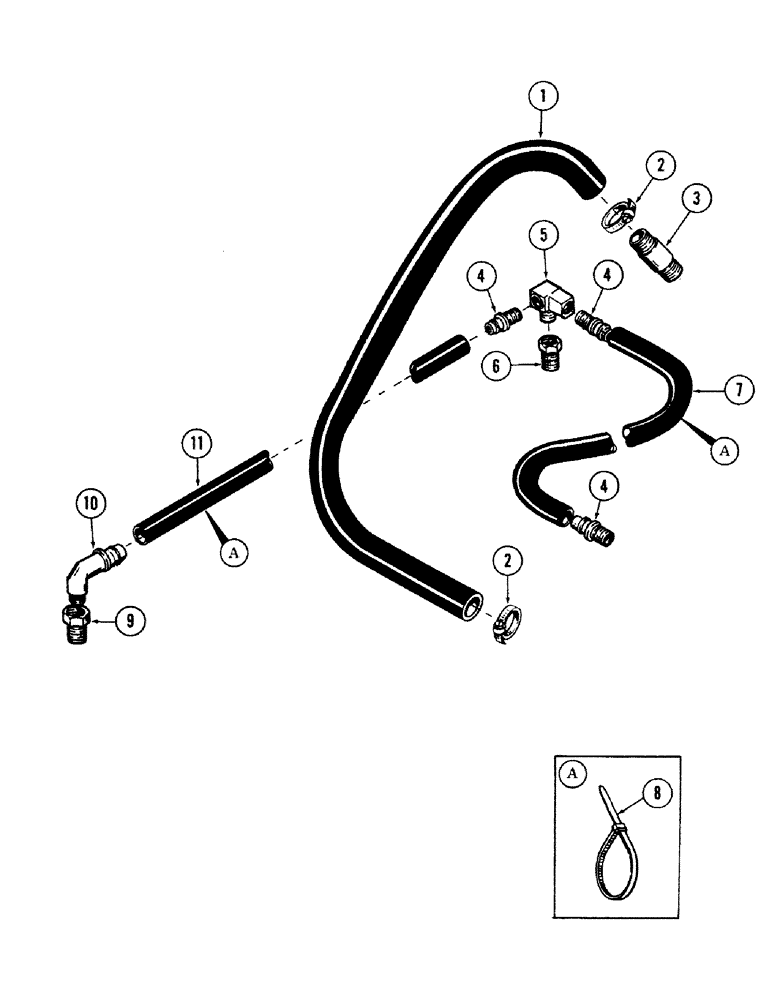

Запчасти Case 50 (2-12) - ENGINE SURGE AND PURGE HOSES, (USED ON UNITS WITH DETROIT DIESEL ENGINE) (02) - ENGINE

1

REF

INSTRUCTION

HOSE - low pressure, 45" (1143 MM) long, to top of radiator, cut from S118438

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

3

221-1921

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - pipe, 3/4" NPT x 2" long, into engine water pump

1шт.

4

220-3

FITTING

END - hose, fits 3/8" ID hose x 1/4" NPT

3шт.

5

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- 1/4" NPT

1шт.

6

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducing, 3/8" NPT x 1/4" NPT, into thermo housing on engine

1шт.

7

REF

INSTRUCTION

HOSE - low pressure, 22" (558.8 MM) long, to top of radiator, cut from S118400

1шт.

8

S73387

CLIP

TIE - cable

1шт.

9

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducing, 1/2" NPT x 1/4" NPT, into thermo housing on engine

1шт.

10

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

- 90 degree hose end, fits 3/8" ID hose x 1/4" NPT

1шт.

11

REF

INSTRUCTION

HOSE - low pressure, 20" (508 MM) long, cut from S118400

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Low pressure 0.38" ID x 300.00"

1шт.

S118438

HOSE,1.00" ID x 120.00", SAE 20R1

- Low pressure 1.00" ID x 120.00", SAE 20R1

1шт.
