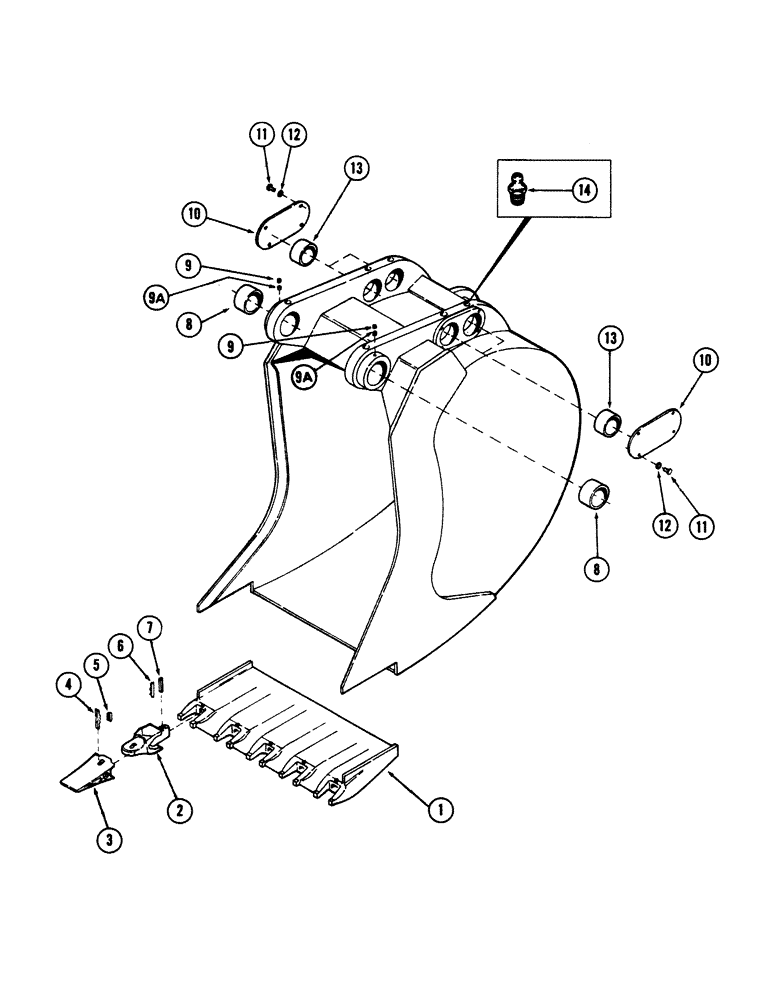

Запчасти Case 50 (9-268) - BACKHOE BUCKETS, (SEVERE DUTY), (ORDER BUCKET ASSEMBLIES FROM MACHINERY PRICE LIST) (09) - CHASSIS

BUCKET ASSEMBLY - backhoe, 24" wide (609 MM)

1шт.

1

S98400

EDGE

- cutting, Esco Lip, 24" (609 MM)

1шт.

BUCKET ASSEMBLY - backhoe, 36" (914 MM) wide

1шт.

1

S98402

LIP

EDGE - cutting, Esco Lip, 24" (914 MM)

1шт.

BUCKET ASSEMBLY - backhoe, 42" (1066 MM)

1шт.

1

S98404

EDGE - cutting, Esco Lip, 42" (1066 MM)

1шт.

2

S91258

ADAPTER

tooth assemblies

1шт.

3

S91259

POINT

tooth assemblies

1шт.

4

S91265

PIN

tooth assemblies

1шт.

5

S90192

LOCK

tooth assemblies

1шт.

6

S110285

WEDGE

tooth assemblies

1шт.

7

S110286

SPOOL

tooth assemblies

1шт.

8

S229392

BUSHING

bucket related parts

2шт.

9

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8" (Cup point) (Top), bucket related parts

2шт.

9

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8" (Cone point) (Bottom), bucket related parts

2шт.

10

REF

INSTRUCTION

COVER, bucket related parts

2шт.

11

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" x 7/8" NC hex (Grade 8), bucket related parts

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

13

REF

INSTRUCTION

BUSHING, bucket related parts

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITIING - grease, 1/8" NPT straight, bucket related parts

6шт.
