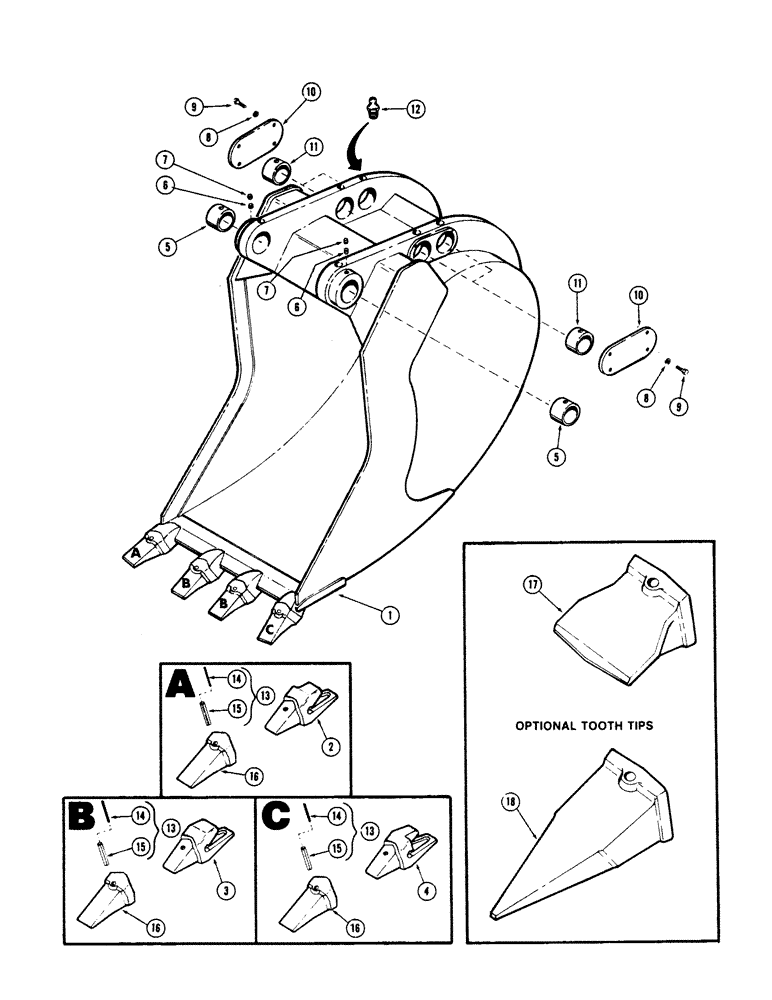

Запчасти Case 50 (9-266) - BACKHOE BUCKETS, (GENERAL PURPOSE), (ORDER BUCKET ASSEMBLIES FROM AMCHINERY PRICE LIST) (09) - CHASSIS

BUCKET ASSEMBLY - backhoe, 25" wide (635 MM), Includes: Ref. 1 - 4

1шт.

1

S239199

EDGE

- cutting, 25" (635 MM)

1шт.

2

S615007

SHANK, BUCKET TOOTH

SHANK - tooth (Left hand)

1шт.

3

S615005

SHANK, BUCKET TOOTH

SHANK - tooth (Center)

1шт.

4

S615006

SHANK, BUCKET TOOTH

SHANK - tooth (Right hand)

1шт.

BUCKET ASSEMBLY - backhoe, 30" wide (762 MM), Includes: Ref. 1 - 4

1шт.

1

S239200

EDGE

- cutting, 30" (762 MM), 3/4" Cu. Yd. (.57 Cu. M.) backhoe bucket

1шт.

2

S615007

SHANK, BUCKET TOOTH

SHANK - tooth (Left hand), 3/4" Cu. Yd. (.57 Cu. M.) backhoe bucket

1шт.

3

S615005

SHANK, BUCKET TOOTH

SHANK - tooth (Center), 3/4" Cu. Yd. (.57 Cu. M.) backhoe bucket

2шт.

4

S615006

SHANK, BUCKET TOOTH

SHANK - tooth (Right hand), 3/4" Cu. Yd. (.57 Cu. M.) backhoe bucket

1шт.

BUCKET ASSEMBLY - backhoe, 36" wide (914 MM), Includes: Ref. 1 - 4

1шт.

1

S239201

EDGE

- cutting, 36" (914 MM), 7/8" Cu. Yd. (.67 Cu. M) backhoe bucket

1шт.

2

S615007

SHANK, BUCKET TOOTH

SHANK - tooth (Left hand)

1шт.

3

S615005

SHANK, BUCKET TOOTH

SHANK - tooth (Center)

3шт.

4

S615006

SHANK, BUCKET TOOTH

SHANK - tooth (Right hand)

1шт.

BUCKET ASSEMBLY - backhoe, 42" wide (1066 MM), 1 Cu. Yd. (.76 Cu .M.) backhoe bucket

1шт.

1

S239202

EDGE, CUTTING

EDGE - cutting, 42" (1066 MM), 1 Cu. Yd. (.76 Cu .M.) backhoe bucket

1шт.

2

S615007

SHANK, BUCKET TOOTH

SHANK - tooth (Left hand), 1 Cu. Yd. (.76 Cu .M.) backhoe bucket

1шт.

3

S615005

SHANK, BUCKET TOOTH

SHANK - tooth (Center), 1 Cu. Yd. (.76 Cu .M.) backhoe bucket

4шт.

4

S615006

SHANK, BUCKET TOOTH

SHANK - tooth (Right hand), 1 Cu. Yd. (.76 Cu .M.) backhoe bucket

1шт.

5

S229392

BUSHING

bucket related parts

2шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set (Cone point), 3/8" NC x 3/8", bucket related parts

2шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set (Cup point), 3/8" NC x 3/8", bucket related parts

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket related parts 3/8"

8шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" (Grade 8), bucket related parts

8шт.

10

S111923

COVER

bucket related parts

2шт.

11

S234928

BUSHING

bucket related parts

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight, bucket related parts

6шт.

13

S239749

ROLL PIN

PIN ASSEMBLY - roll, bucket related parts, Includes: Ref. 14 - 18

1шт.

14

S117381

RUBBER

PLUG - rubber (4"), bucket related parts

1шт.

15

138-214

LOCK PIN,1/2" x 4", Slotted

Pin, , bucket related parts 1/2" x 4", Slotted

1шт.

16

S615004

POINT

TIP - tooth, bucket related parts

1шт.

17

S615022

POINT

TIP - tooth, bucket related parts

1шт.

18

S615023

POINT

TIP - tooth, bucket related parts

1шт.
