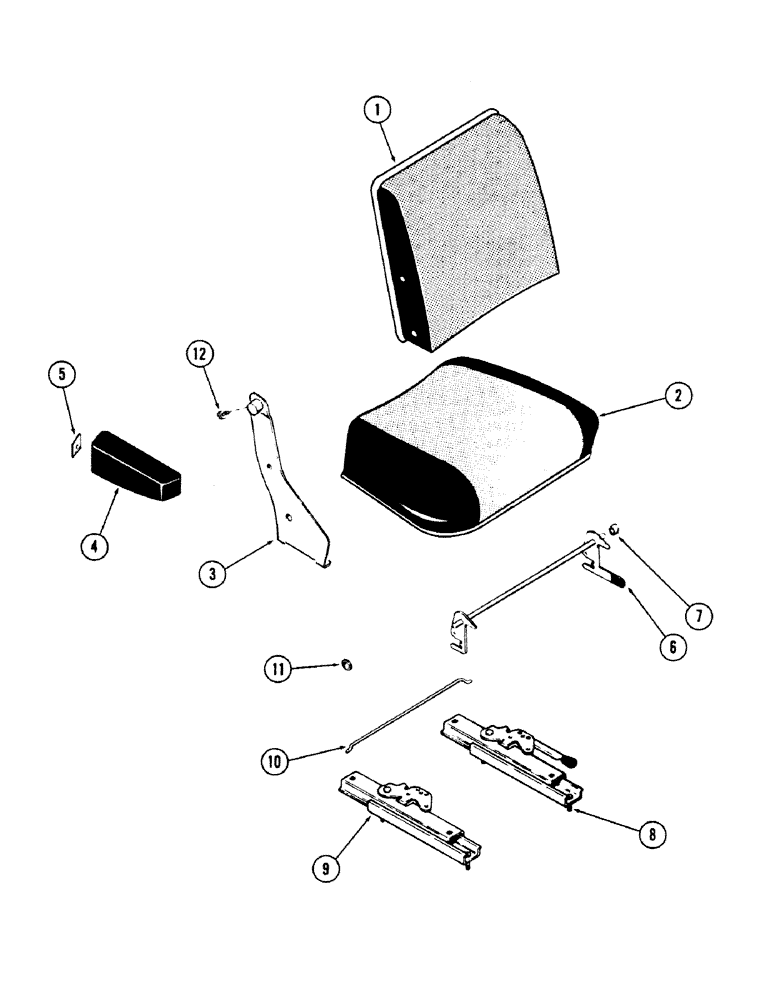

Запчасти Case 50 (9-264) - OPERATORS SEAT ASSEMBLY (09) - CHASSIS

S612692

SEAT ASSY.

SEAT, Includes: Ref. 1 - 12

1шт.

1

S114280

BACKREST

CUSHION - back rest

1шт.

2

S114279

CUSHION

- seat

1шт.

3

S114281

BRACKET - side, right-hand

1шт.

S114282

BRACKET

- side, left-hand (Not shown)

1шт.

4

A45489

ARMREST

- right-hand

1шт.

A45488

ARMREST

- left-hand (Not shown)

1шт.

5

A45584

COVER

PLATE - cover, right-hand

1шт.

A45583

PLATE

- cover, left hand (Not shown)

1шт.

6

A114283

TILT ASSEMBLY

1шт.

7

A45482

BUSHING

SPACER - tilt shaft

2шт.

8

S114284

SLIDE

ASSEMBLY - with handle, left-hand

1шт.

9

A45523

SLIDE

ASSEMBLY - right-hand

1шт.

10

S114285

ROD

- slide latch connecting

1шт.

11

A45110

WASHER

SPACER

2шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.
