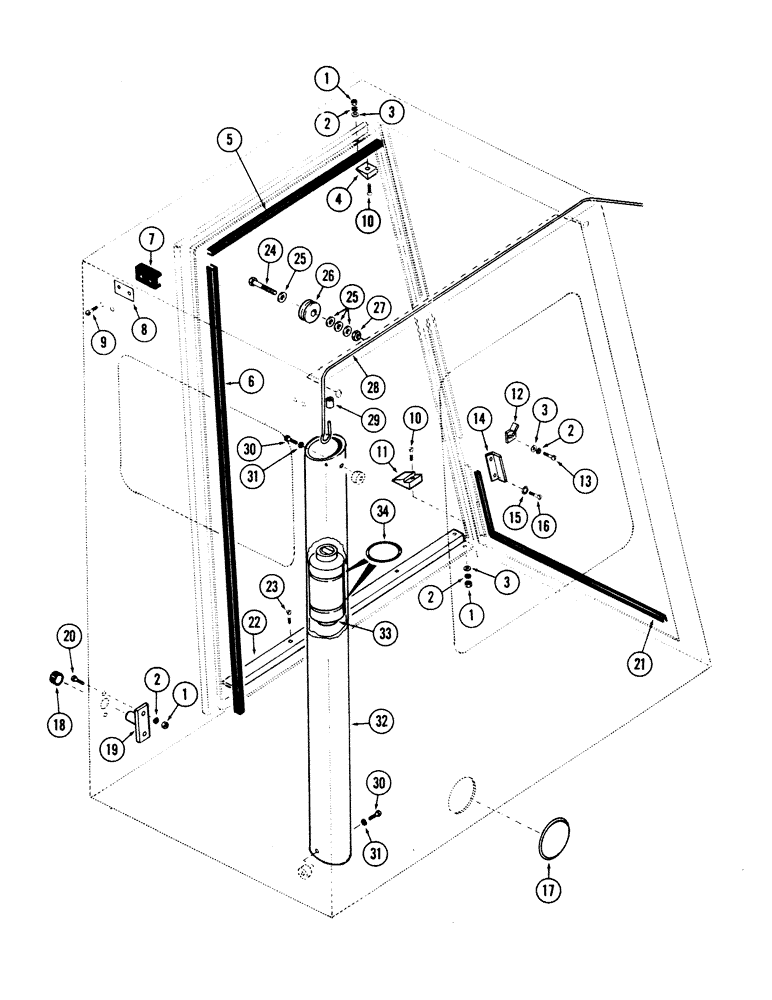

Запчасти Case 50 (9-262) - CAB AND ATTACHING PARTS (09) - CHASSIS

S956135

CAB

ASSY, Includes: Ref. 1 - 23

1шт.

1

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

WASHER - lock, 1/4"

2шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4"

10шт.

4

S117532

STRIKER PLATE

1шт.

5

REF

INSTRUCTION

SEAL - 30-1/2" (774.7 MM) long - cut from S118479

1шт.

6

REF

INSTRUCTION

SEAL - 59-1/2" (1511.3 MM) long - cut from S118479

1шт.

7

S117701

PAD - mounting

2шт.

8

S118210

SHIM

6шт.

9

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- no. 10 NC x 5/8"

4шт.

10

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- 1/4" NC x 1/2"

2шт.

11

A36080

PLATE

STRIKER PLATE

1шт.

12

S117705

WEDGE

2шт.

13

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" NC x 3/4"

4шт.

14

S117651

TRACK

2шт.

15

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

16

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- 1/4" NC x 1/2"

4шт.

17

S117638

PLUG

1шт.

18

S117543

BUMPER

1шт.

19

S239654

CATCH

1шт.

20

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- 1/4" NC x 1/2"

2шт.

21

REF

INSTRUCTION

SEAL - trim, 63" (1600.2 MM) long - cut from S118480

1шт.

22

S239626

ANGLE

- sill

1шт.

23

187-1123

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW - no. 8 NC x 1/2"

5шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

25

195-525

WASHER,3/8", SAE

- flat, 3/8"

45шт.

26

S117521

PULLEY

4шт.

27

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

28

S117548

METAL ROPE

CABLE - 2 pieces, 1/8" dia. x 108" long

1шт.

29

S117815

SLEEVE

- splicing

4шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

31

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

32

S239687

TUBE,3" ID x 54.4" L

- right hand

1шт.

S239688

TUBE,3" ID x 54.4" L

- left hand (Not shown)

1шт.

33

S239689

WEIGHT

Includes: Ref. 34

2шт.

34

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- 2.609" ID x 2.887" OD

4шт.

35

S61769

HOOK

COAT HOOK - (Not shown)

1шт.

S118479

SEAL

- 90" (2286 MM) long

1шт.

S118480

SEAL

SEAL - 600" (15240 MM) long

1шт.
