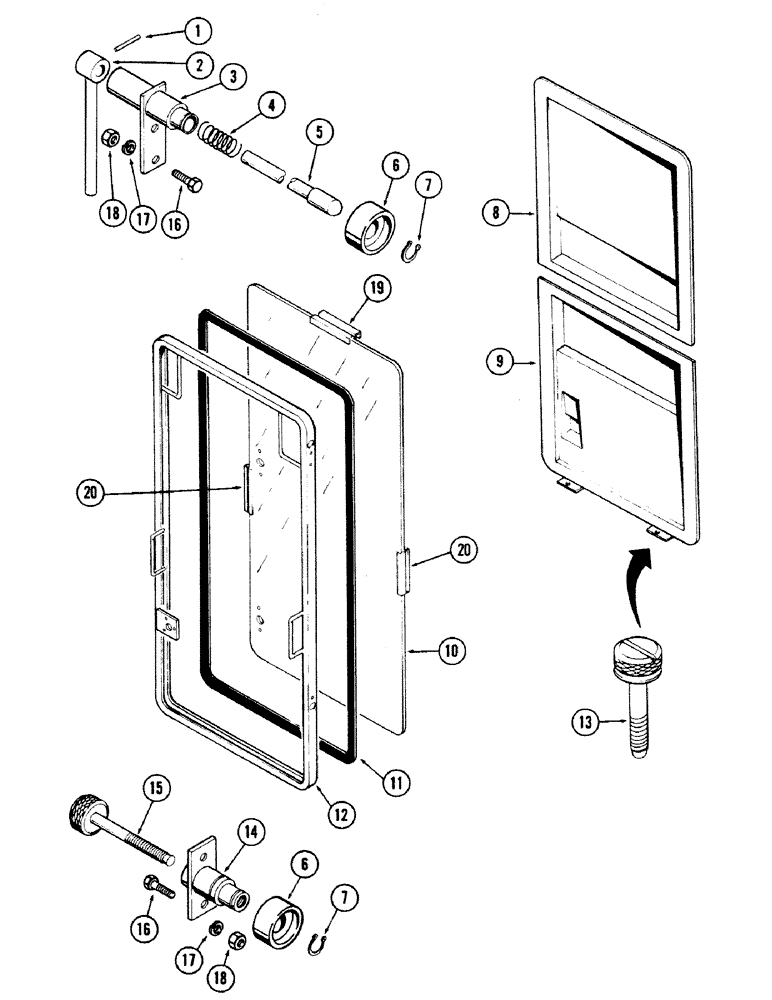

Запчасти Case 50 (9-260) - CAB WINDSHIELD (09) - CHASSIS

S956135

CAB

ASSY, Includes: Ref. 1 - 22

1шт.

1

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

2

S239621

HANDLE

2шт.

3

S239686

SHAFT

2шт.

4

A58271

SPRING

2шт.

5

S239677

PIN

2шт.

6

S117522

ROLLER

4шт.

7

S117634

RING, SNAP

RING - retaining

4шт.

8

S616525

GUARD

- upper vandal

1шт.

9

S616524

GUARD

- lower vandal

1шт.

10

S616088

WINDOW

WINDSHIELD

1шт.

11

REF

INSTRUCTION

SEAL - 180" (4572 MM) long - cut from S118478

1шт.

12

S956335

FRAME - windshield

1шт.

13

S109773

FASTENER

LOCK - vandal guard

2шт.

14

S239618

SHAFT

2шт.

15

S117544

CLAMP

2шт.

16

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" NC x 3/4"

8шт.

17

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

19

S240129

CHANNEL

RETAINER - upper windshield

1шт.

20

S240130

CLIP

RETAINER - side windshield

2шт.

21

S117550

SHIM - used with ref. 3 (Not shown)

8шт.

22

S117551

SHIM

- used with ref. 14 (Not shown)

8шт.

S118478

SEAL

- 600" (15420 MM) long

1шт.
