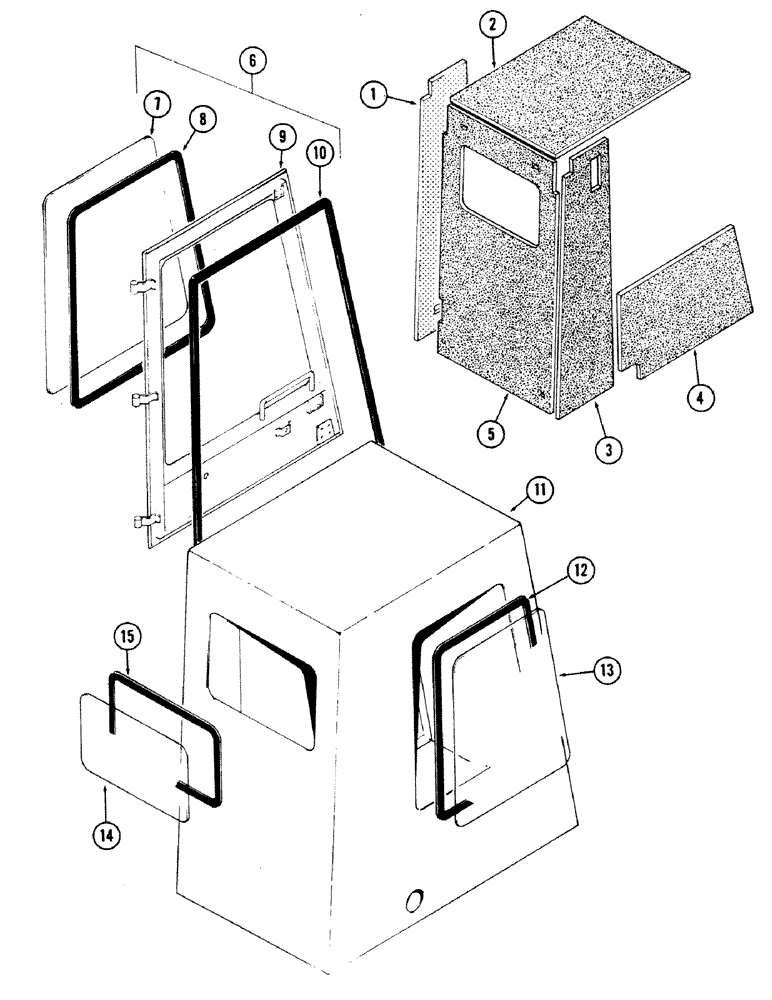

Запчасти Case 50 (9-256) - CAB (09) - CHASSIS

S956135

CAB

ASSY, Includes: Ref. 1 - 15

1шт.

1

S239736

INSULATOR

INSULATION - left side

1шт.

2

S239738

INSULATOR

INSULATION - top

1шт.

3

S239735

INSULATION - right rear

1шт.

4

S239737

INSULATOR

INSULATION - right front

1шт.

5

S515091

INSULATION - rear

1шт.

6

S616086

DOOR ASSY.

DOOR ASSY - (See Figure 9-258), Includes: Ref. 7 - 10

1шт.

7

S515043

GLASS - door

1шт.

8

REF

INSTRUCTION

SEAL - 77" (1955.8 MM) long - cut from S118468

1шт.

9

REF

INSTRUCTION

DOOR - (See Ref. 1 on Figure 9-258)

1шт.

10

REF

INSTRUCTION

SEAL - 202" (5130.8 MM) long - cut from S118476

1шт.

11

CAB - order S956135 cab assy

1шт.

12

REF

INSTRUCTION

SEAL - 163" (4140.2 MM) long - cut from S118468

1шт.

13

S515028

GLASS - right

1шт.

14

S239683

GLASS - rear

1шт.

15

REF

INSTRUCTION

SEAL - 83.3" (2115.8 MM) long - cut from S118477

1шт.

S118468

SEAL

- 360" (9144 MM) long

1шт.

S118476

RUBBER JOINT

SEAL - 600" (15240 MM) long

1шт.

S118477

SEAL

- 600" (15240 MM) long

1шт.
