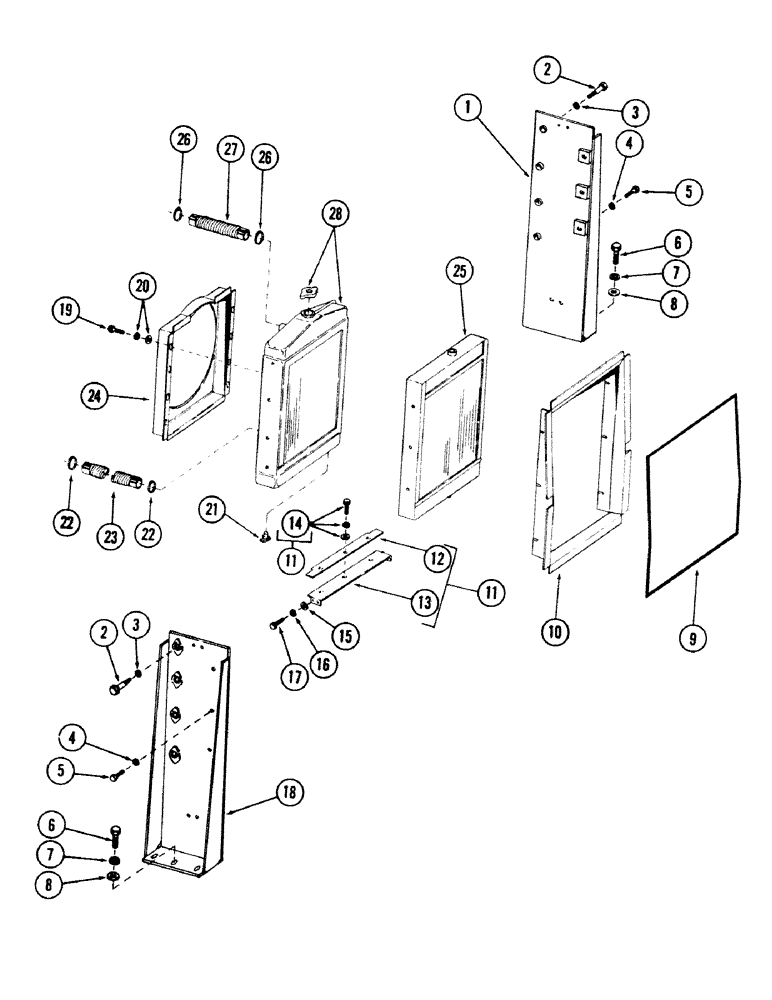

Запчасти Case 50 (2-10) - RADIATOR, OIL COOLER AND HOSES (02) - ENGINE

1

S513034

BRACKET, radiator and oil cooler mounting - (Left hand)

1шт.

2

S76819

STEP BOLT

BOLT, shoulder -, Serial Range: (Radiator-brackets)

8шт.

3

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Oil cooler to brackets) Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Brackets to turntable) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Bracket to turntable) Hex, 1/2"-13 x 2", G5

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

8

S95569

WASHER

flat - 1/2"

6шт.

9

REF

INSTRUCTION

MOLDING - 145" (3683 MM) Long, cut from S118475 (145")

1шт.

10

S609659

SHROUD, air duct

1шт.

11

S229625

BRACKET, radiator to cooler, Includes Ref. 12 -14

2шт.

12

S229946

STRIP

1шт.

13

S229626

BRACKET

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

195-101

WASHER,3/16"

flat - 1/4"

3шт.

15

195-102

WASHER,1/4"

flat - 5/16"

8шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Mounts to ref. 1 and 18) Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

18

S513035

BRACKET

radiator and cooler mounting - (Right hand)

1шт.

19

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

machine - 1/4" NC 5/8"

8шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

195-518

WASHER,1/4", SAE

flat - 9/32"

8шт.

21

A23656

COCK, DRAIN

DRAIN, radiator

1шт.

22

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose - (Used with CASE diesel engines)

2шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(Used with Detroit diesel engines) #36, 1.81/2.75 Type F Worm

2шт.

23

S85823

HOSE,63.5 mm ID x 609.60 mm, SAE 20R5

63.5 mm ID x 609.6 mm, SAE 20R5, Radiator, Lower; Used With CASE Diesel Engines

1шт.

S76701

HOSE

radiator - (Lower) - (Used with DETROIT DIESEL engines)

1шт.

24

S609718

SHROUD

fan - (Used with CASE diesal engines)

1шт.

S610685

SHROUD

fan - (Used with DETROIT DIESEL engines)

1шт.

25

S609652

COOLER

oil

1шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose - (Used with CASE diesel engines)

2шт.

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- (Used with Detroit diesel engines) #28, 1.31/2.25 Type F Worm

2шт.

27

S230570

HOSE,2.50" ID x 12.26", SAE 20R4 CLASS SC

RADIATOR HOSE, , Upper (Used w/Case Diesel Engines) 2.50" ID x 12.26", SAE 20R4 CLASS SC

1шт.

S69874

HOSE

radiator - (Upper) - (Used with DETROIT DIESEL engines)

1шт.

28

S609650

RADIATOR

- (Used with CASE diesel engines)

1шт.

S613849

RADIATOR

- (Used with DETROIT DIESEL engines)

1шт.

D25826

CAP

radiator - 7 lbs. (3.18 kg) Pressure

1шт.

S118475

SEAL

MOLDING - 120" (3048 MM) Long

1шт.
