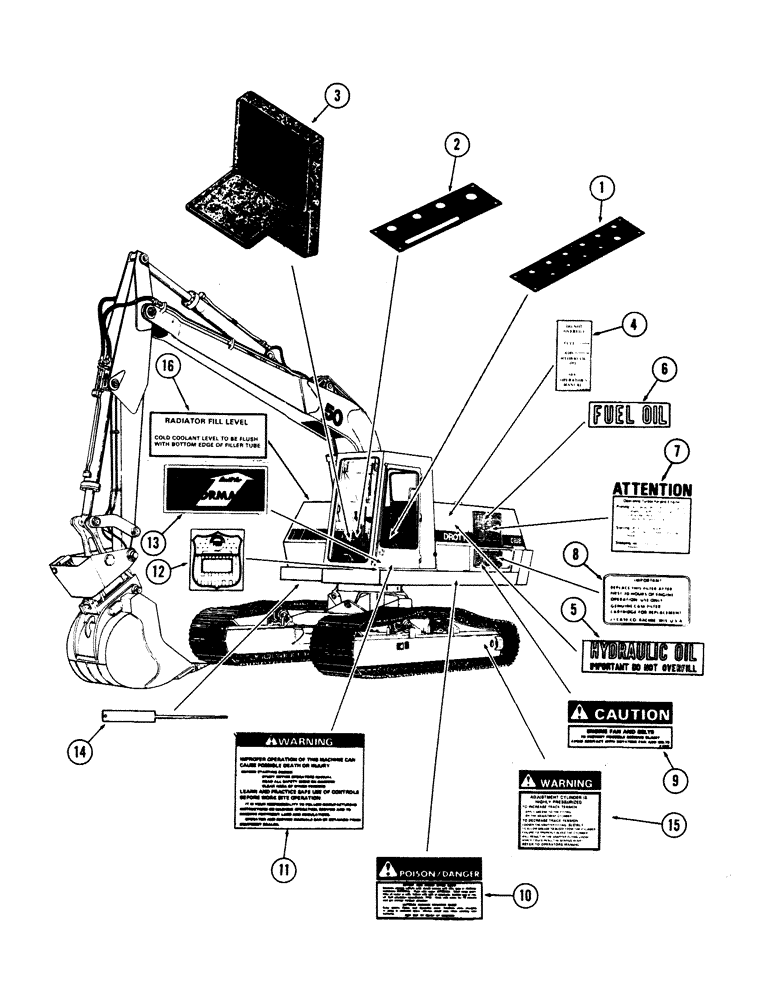

Запчасти Case 50 (9-248) - DECALS (09) - CHASSIS

1

321-6098

PANEL

DECAL - instrument panel (Left side)

1шт.

2

321-6097

PANEL

DECAL - instrument panel (Right side) (Used on units with CASE 504BDT diesel engines)

1шт.

321-6457

DECAL

- instrument panel (Right side) (Used on units with DETROIT DIESEL 6V-53 engines)

1шт.

3

S511692

BOX

COMPARTMENT - manual

1шт.

S109782

RIVET

2шт.

A141917

ROPE

CORD - anchor (For manual)

1шт.

4

S233480

DECAL

- hydraulic oil level

1шт.

5

S80209

DECAL

- hydraulic oil fill

1шт.

6

S70192

DECAL

- fuel oil

1шт.

7

321-2605

DECAL

- turbocharger protection - (Used with CASE engine)

1шт.

8

321-2101

DECAL

- oil filter (Used with CASE engine)

1шт.

9

321-2996

DECAL

- fan caution

3шт.

10

321-2996

DECAL

- battery damage

1шт.

11

S231311

DECAL

- operators warning

1шт.

12

S89871

DECAL

- PCSA

1шт.

13

S221202

DECAL

- performance

1шт.

14

S99804

TAG - identification (Left track forward)

1шт.

S99805

TAG - identification (Left track reverse)

1шт.

S99806

TAG - identification (Right track forward)

1шт.

S99807

TAG - identification (Right track reverse)

1шт.

S99808

TAG - identification (Crowd in)

1шт.

S99809

TAG - identification (Crowd out)

1шт.

S99810

TAG - identification (Tool in)

1шт.

S99811

TAG - identification (Tool out)

1шт.

S99812

TAG - identification (Hoist down)

1шт.

S99813

TAG - identification (Hoist up)

1шт.

S99814

TAG - identification (Swing right)

1шт.

S99815

TAG - identification (Swing left)

1шт.

S108802

TAG - identification (Leveler left)

1шт.

S108803

TAG - identification (Leveler right)

1шт.

15

321-6272

DECAL

- adjustment cylinder warning

2шт.

S23395

SCREW

- drive

8шт.

16

321-6329

DECAL

- radiator fill level

1шт.
