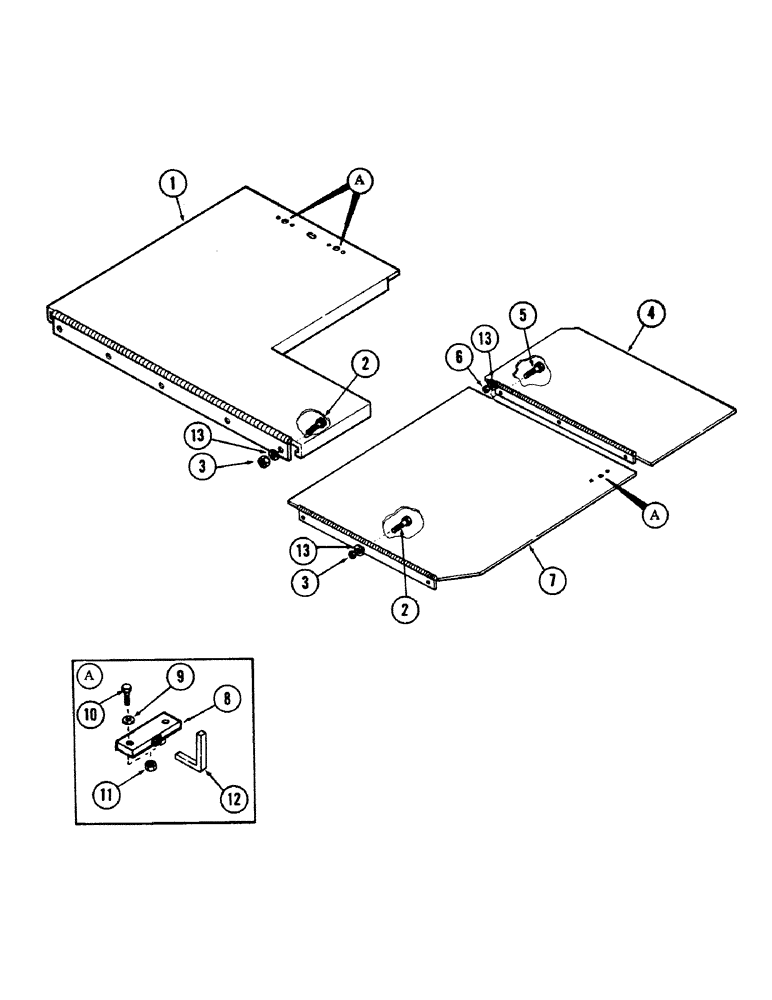

Запчасти Case 50 (9-246) - VANDAL GROUP (09) - CHASSIS

1

S613454

SHROUD

- upper left

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

3

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - self locking, 3/8" NC

8шт.

4

S513493

SHROUD

- upper right front

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

6

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

3шт.

7

S613460

SHROUD

- upper right rear

1шт.

8

S110414

LOCK

3шт.

9

195-103

WASHER,5/16"

- flat, 3/8"

3шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- 1/4" x 3/8" NC hex (Grade 5)

6шт.

11

131-461

LOCK NUT,1/4"-20

NUT - self locking, 1/4" NC

6шт.

12

S115083

KEY

- shroud

1шт.

13

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

-flat, 3/8"

11шт.

14

S238704

STRIP

BAR - used with ref. 4 (Not shown)

1шт.
