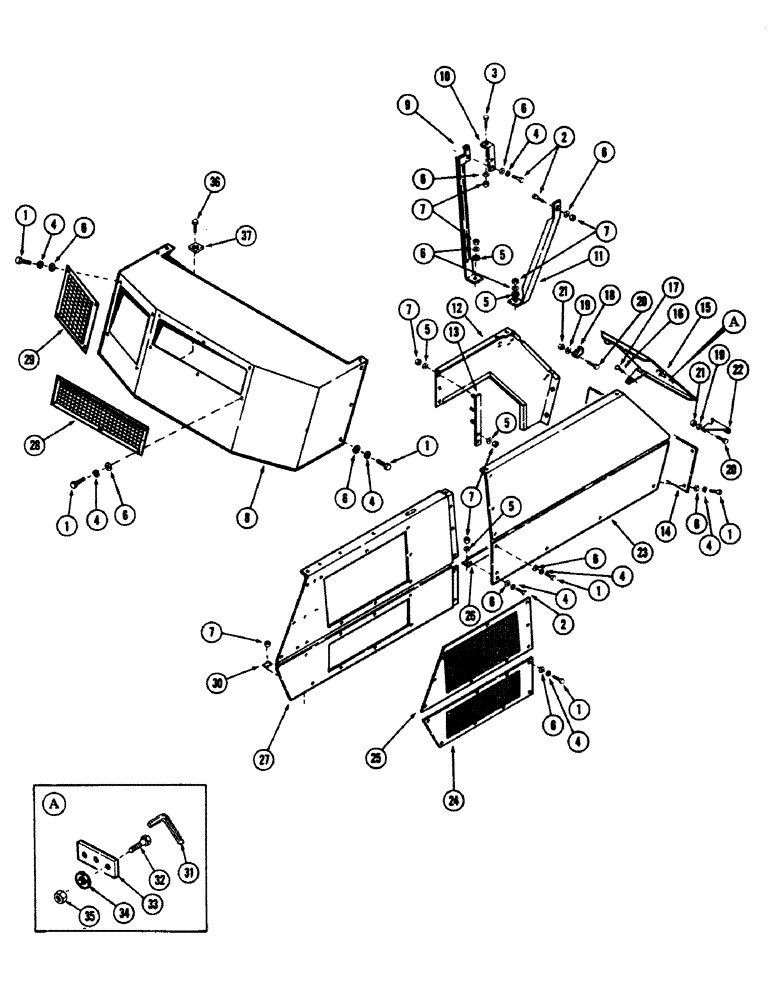

Запчасти Case 50 (9-242) - TURNTABLE SHROUDING AND RELATED PARTS, (RIGHT SIDE AND REAR) (09) - CHASSIS

1

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S95569

WASHER

flat - 1/2"

1шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

8

S956139

SHROUD, rear

1шт.

9

S231434

BRACE, shroud support

1шт.

10

S231433

ANGLE, Serial Range: brace-shroud

1шт.

11

S236633

BRACE, Serial Range: turntable-shroud

1шт.

12

S602602

SHROUD

1шт.

13

S238412

SUPPORT, shroud

1шт.

14

S219991

SHEET

COVER

1шт.

15

S613463

DOOR

front

1шт.

16

A70250

PIN

hair

1шт.

17

S217887

PIN

door holder

1шт.

18

S221455

BRACKET

door mounting

1шт.

19

195-103

WASHER,5/16"

flat - 3/8"

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

22

S221453

BRACKET

BRCKET, door holder

1шт.

23

S613462

SHROUD, right front

1шт.

24

S505911

GRILLE, shroud lower

1шт.

25

S505912

GRILLE, shroud upper

1шт.

26

S219989

ANGLE

shroud mount

1шт.

27

S602600

SHROUD, right rear

1шт.

28

S236583

GRILLE, rear

1шт.

29

S239179

GRILLE, air cleaner

1шт.

30

S95569

WASHER

flat - 1/2"

3шт.

31

S115083

KEY

angle

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

33

S110414

LOCK

1шт.

34

195-516

WASHER,#12

flat - 1/4"

4шт.

35

131-461

LOCK NUT,1/4"-20

NUT, self locking - 1/4" NC

2шт.

36

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

37

S116722

BAR

2шт.
