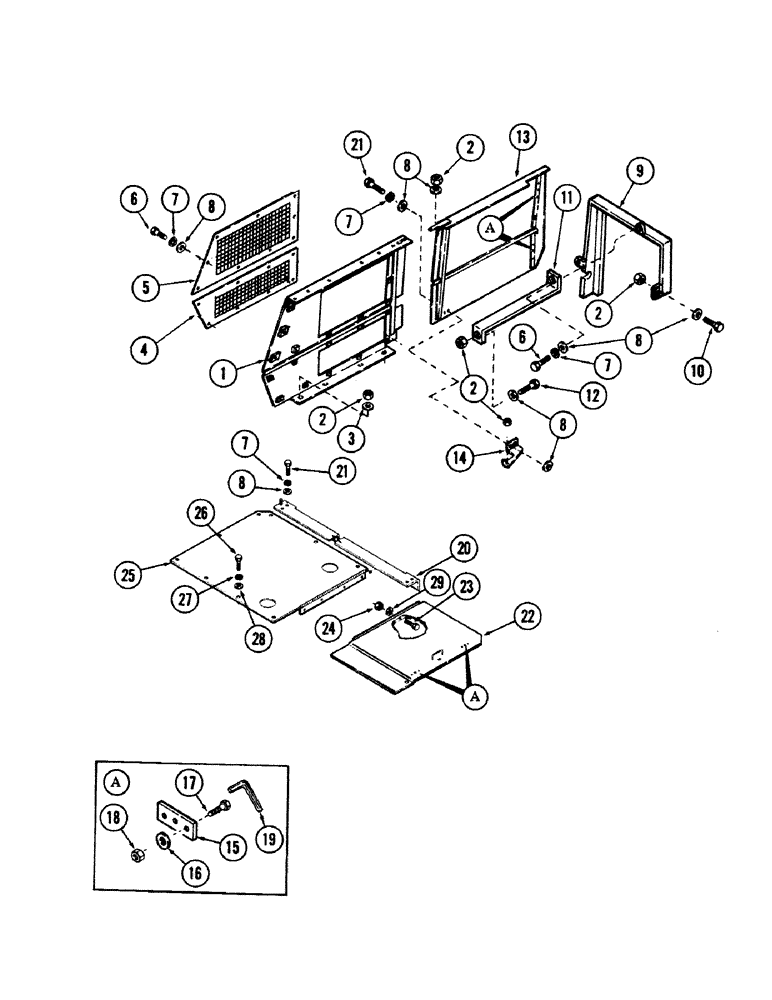

Запчасти Case 50 (9-240) - TURNTABLE SHROUDING AND RELATED PARTS, (LEFT SIDE AND TOP) (09) - CHASSIS

1

S602963

SHROUD, rear side - (Left)

1шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

3

S95569

WASHER

flat - 1/2"

4шт.

4

S505911

GRILLE, bottom

1шт.

5

S505912

GRILLE, top

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

1шт.

9

S956141

BRACKET

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

S236631

BRACE

1шт.

12

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

1шт.

13

S615315

DOOR, side - (Left)

1шт.

14

S513498

BRACKET

4шт.

15

S110414

LOCK

2шт.

16

195-516

WASHER,#12

flat - 1/4"

2шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- 1/4" NC x 3/8" Gr 5

1шт.

18

131-461

LOCK NUT,1/4"-20

NUT, self locking - 1/4" NC

1шт.

19

S115083

KEY

1шт.

20

S613415

ANGLE

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

22

S613354

DOOR, top

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

24

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

25

S613368

SHROUD, engine - (Used with CASE engines)

1шт.

S613324

SHROUD, engine (Used with DETROIT DIESEL engine) - (Not shown)

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

9шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

28

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

9шт.

29

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat - 3/8"

4шт.
