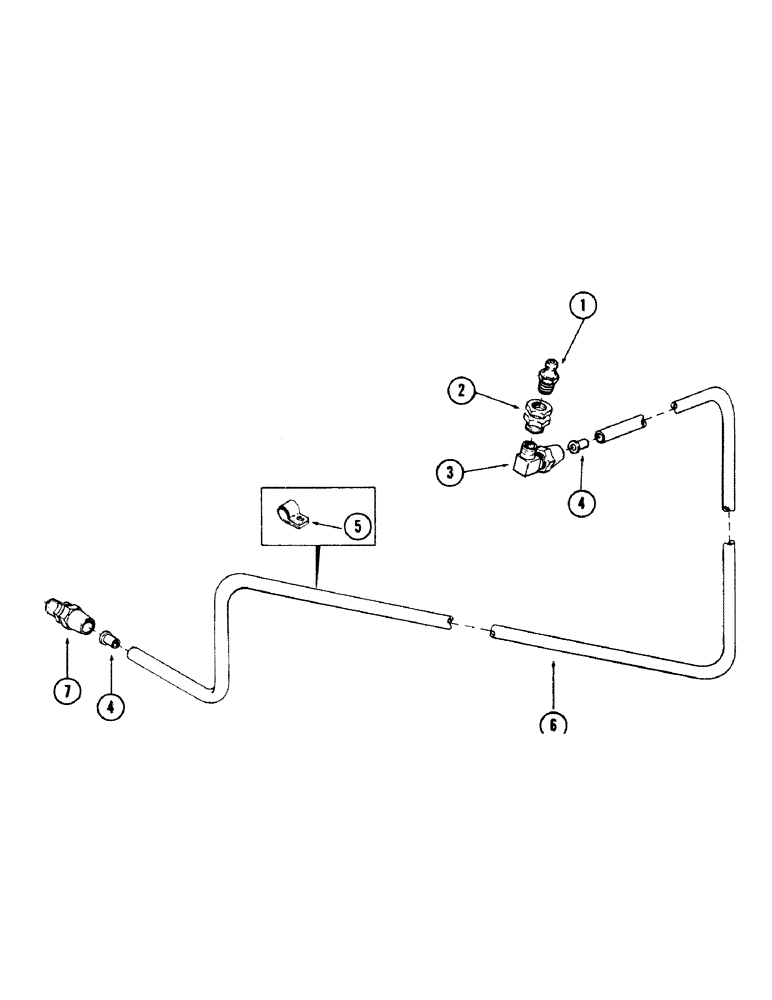

Запчасти Case 50 (9-236) - TURNTABLE BEARING LUBRICATION LINE (09) - CHASSIS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT straight

1шт.

2

217-226

COUPLING

- 1/8" NPT female x 1/8" NPT female

1шт.

3

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, 1/8" NPT male x 3/8" tube

1шт.

4

222-446

SLEEVE - (For 3/8" OD nylon tube)

2шт.

5

A61275

CLIP

CLAMP

1шт.

6

REF

INSTRUCTION

TUBE - nylon, 52" (1320.8 MM) long, cut from S118405

1шт.

7

222-1839

FITTING,17/32"-24 x 1/8" NPT

UNION - 1/8" NPT male x 3/8" tube - into turntable bearing

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.
