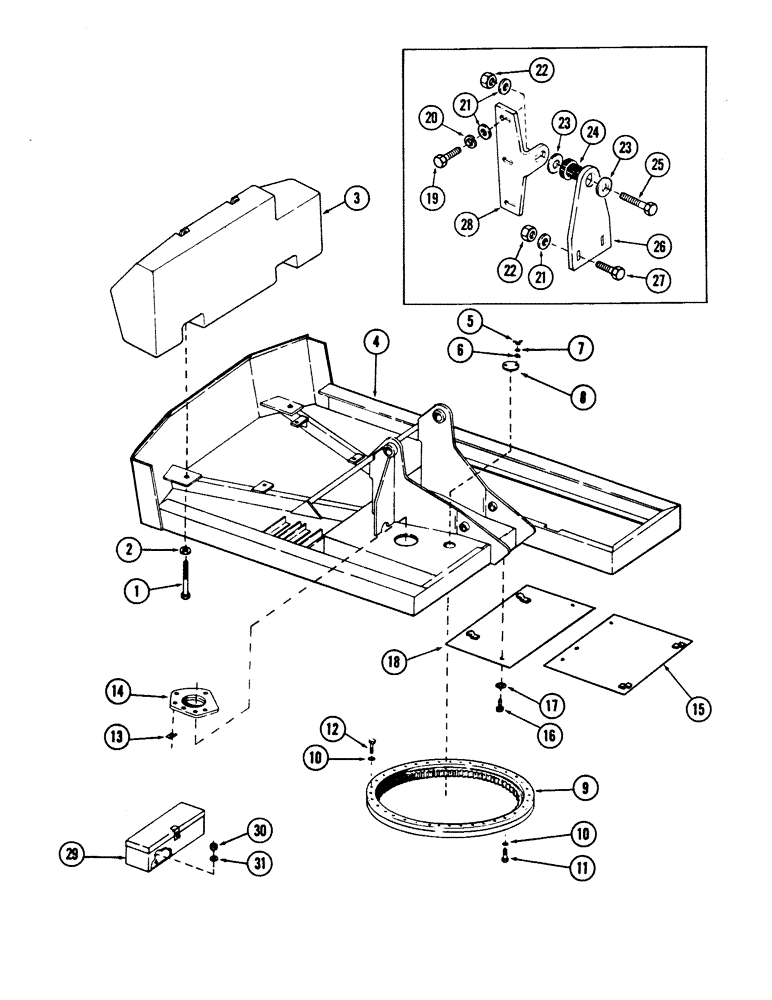

Запчасти Case 50 (9-234) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING (09) - CHASSIS

1

13-2048

BOLT - 1-1/4" NC x 3" Gr 5 Hex, 1 1/4-7 x 3", G5, Full Thd

4шт.

2

196-65

WASHER,1 3/8" x 2 1/2" x .180", HDN

flat - 1-5/16"

4шт.

3

S955958

COUNTERWEIGHT

1шт.

4

S614720

TURNTABLE, machined

1шт.

5

S77941

NUT, wing - 3/8" NC

2шт.

6

195-103

WASHER,5/16"

flat - 3/8"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

S76664

COVER

1шт.

9

S508670

BEARING ASSY

BEARING - turntable

1шт.

10

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat - 3/4" (Hardened)

72шт.

11

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

36шт.

12

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4"-10 NC x 2-1/4", G8

36шт.

13

S77916

SHIM,.005" Thk

(Reducer plate to turntable) .005" Thk

1шт.

S77917

SHIM,.010" Thk

(Reducer plate to turntable) .010" Thk

1шт.

S77918

SHIM,.015" Thk

(Reducer plate to turntable) .015" Thk

1шт.

S77919

SHIM,.030" Thk

(Reducer plate to turntable) .030" Thk

1шт.

S77920

SHIM,.060" Thk

(Reducer plate to turntable) .060" Thk

1шт.

S84889

SHIM,.003" Thk

(Reducer plate to turntable) .003" Thk

1шт.

S84890

SHIM,.007" Thk

(Reducer plate to turntable) .007" Thk

1шт.

14

S506965

SUPPORT

PLATE - swing reducer mounting, Serial Range: (Welds-turntable)

1шт.

15

S606664

GUARD

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

17

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2"

5шт.

18

S508344

GUARD

1шт.

19

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Bracket to cab) Hex, 1/2"-13 x 1 3/4", G5

3шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

21

S95569

WASHER

- flat, 1/2"

6шт.

22

131-70

NUT,1/2"-13, GB

NUT - self locking, 1/2" NC

3шт.

23

196-10

WASHER,.521" x 2" x .134", HDN

- flat (special)

2шт.

24

S110886

MOUNTING PARTS

MOUNT - rubber

1шт.

25

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" NC hex (Grade 5) (Bracket to bracket)

1шт.

26

S238103

BRACKET

1шт.

27

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5 (Bracket to turntable mast ears)

2шт.

28

S514820

BRACKET

1шт.

29

S219842

BOX, TOOL

BOX - tool

1шт.

30

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

4шт.

31

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

32

S108048

LUG

- lift (optional) - (For crawler rear) (Not illustrated)

2шт.

33

240-13

SHACKLE

- (For crawler front on mast ears) - (Not illustrated)

2шт.

34

S231364

PRINT, lift lug installation

1шт.
