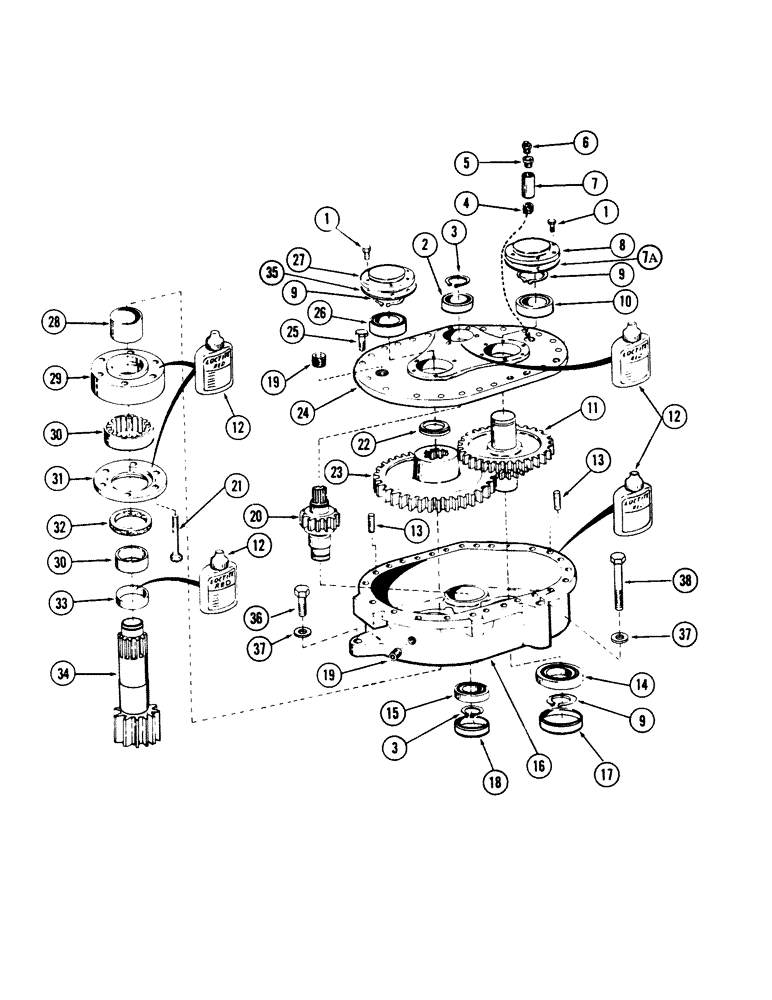

Запчасти Case 50 (9-232) - SWING REDUCER (09) - CHASSIS

S955796

REDUCER

swing, Includes: Ref. 1 - 36

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE - 3/8" NPT x 1-1/2" long

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING, reducer - 3/8" NPT male x 1/8" NPT female

1шт.

6

L33264

BREATHER

VENT - breather

1шт.

7

S238780

TUBE ASSY.,5.87" L

TUBE, oil breather

1шт.

7a

S103261

GASKET

1шт.

8

S402194

CAP

bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

2шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

11

S612548

GEAR

cluster - (Intermediate)

1шт.

12

S96077

SEAL

- 10 CC bottle - (Red) - (Replaces gaskets) - (Substitutes must not be used)

1шт.

13

S97539

DOWEL

2шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

15

D47572

BEARING

ball

1шт.

16

S613678

CASE

gear

1шт.

17

S114620

PLUG

expansion

1шт.

18

S114619

PLUG

expansion

1шт.

19

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

4шт.

20

S612550

SHAFT

PINION AND SHAFT, input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" NC x 3-1/4" Gr 8

6шт.

22

S235525

SPACER

, Serial Range: bearing-gear

1шт.

23

S612546

GEAR

drive

1шт.

24

S612551

COVER

gear case

1шт.

25

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" NC x 1-3/4" Gr 8

22шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, roller

1шт.

27

S214012

CAP

bearing

1шт.

28

S235526

SPACER

1шт.

29

S508461

RETAINER

roller bearing

1шт.

30

S112817

ROLLER BEARING,75mm ID x 130mm OD x 41.28mm W

BEARING AND RACE ASSEMBLY

1шт.

31

S508460

RETAINER

oil seal

1шт.

32

S98415

OIL SEAL

oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S616256

SHAFT

AND GEAR, output

1шт.

35

S85842

GASKET

2шт.

36

A144595

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

1шт.

37

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" NC x 2" Gr 8

1шт.

38

S92341

WASHER

flat - 7/8" - (Hardened steel)

3шт.

39

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" NC x 5-3/4" Gr 8

2шт.
