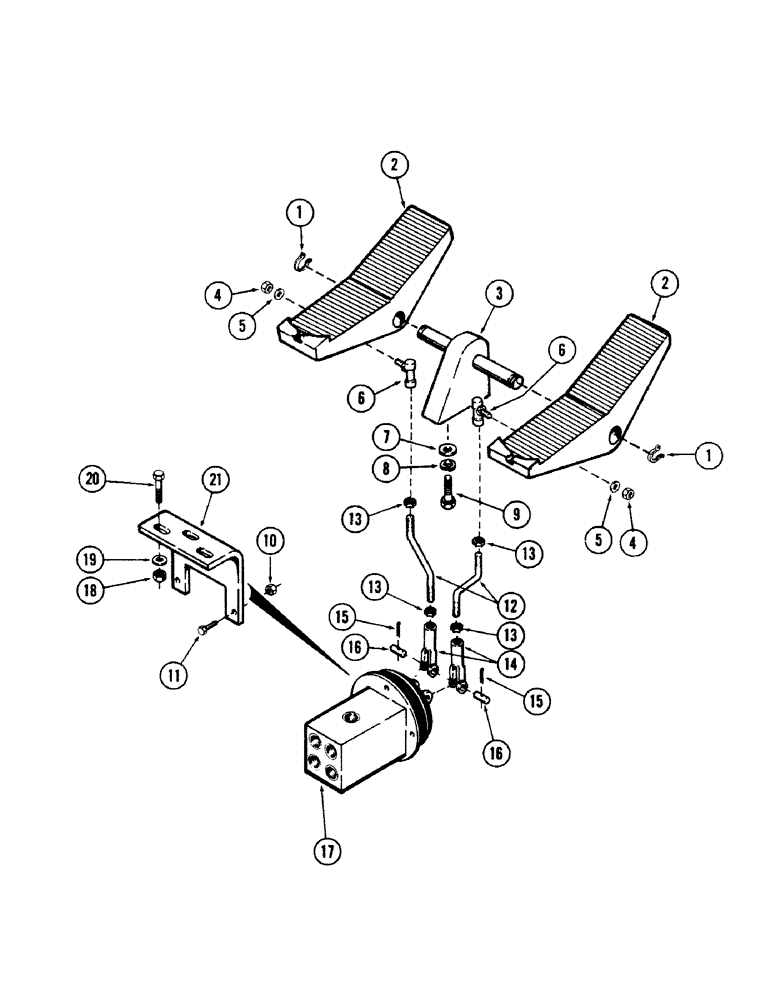

Запчасти Case 50 (8-228) - FOOT PEDAL CONTROL AND ATTACHING PARTS (08) - HYDRAULICS

1

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retainer

2шт.

2

S615523

PEDAL

- foot control

2шт.

3

S239280

BRACKET

1шт.

4

131-493

NUT

- self locking, 3/8" NF

2шт.

5

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

6

S215594

BALL

JOINT

2шт.

7

196-20

WASHER,41/64" x 1.047" x .134", HDN

- flat, 5/8"

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10

86625061

NUT,1/4"-20, GB

NUT - self locking, 1/4" NC

3шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

12

S236860

ROD

2шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" NF

4шт.

14

S66383

YOKE

2шт.

15

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

16

S105940

PIN,11.02mm OD x 22.23mm L

- clevis

2шт.

17

REF

INSTRUCTION

VALVE - control (See Figure 8-180)

1шт.

18

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

3шт.

19

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32"

3шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

21

S513596

TUBE,1.25" OD

BRACKET - control valve mounting

1шт.
